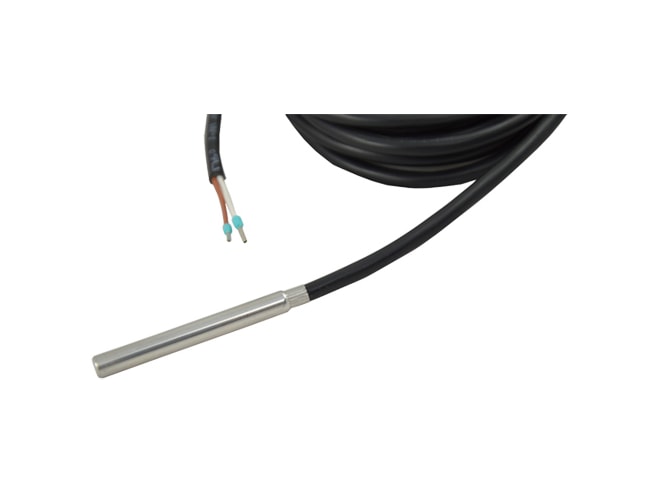

E+E EE461 Cable Temperature Sensor

Passive temperature measurement, IP65 / NEMA 4 protection class, cable lengths up to 32.8ft (10m).

Starting at $28.00

Effective April 9th, 2025, E+E has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • Passive temperature measurement
  • -22 to 221°F (-30 to 105°C) operating temp
  • IP65 / NEMA 4 protection class
  • Two wire connection
  • Cable lengths available up to 32.8ft (10m)

The E+E EE461 Cable Temperature Sensors are designed for use in heating, ventilation and air conditioning systems as well as for process control. Several types of sensing elements such as Pt1000, NTC10k or Ni1000 are available. Due to an innovative production concept (star pressing of the sensor sleeve) a high protection class IP67 is provided. Product-specific information is printed all along the cable.

Applications for the EE461 include:

  • Building automation
  • Process and climate control
