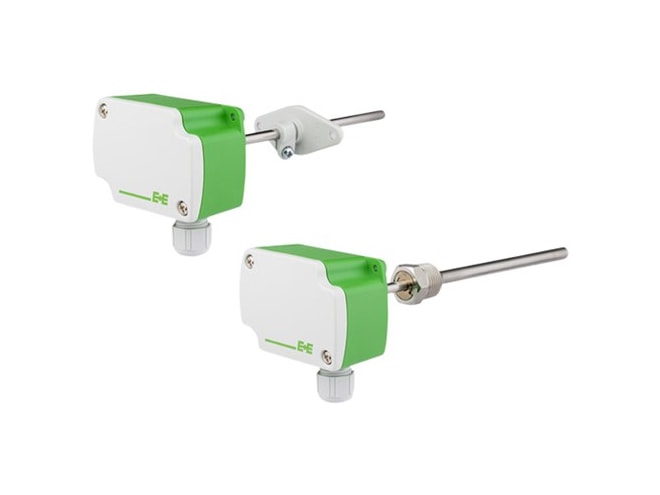

E+E EE431 Temperature Sensor

Duct / immersion temperature sensor, measuring ranges up to 302°F (150°C), passive or active output.

Starting at $74.00

Effective April 9th, 2025, E+E has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on the order.


View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 8-10 weeks
Product Manual Product Specs (3 Files)

Features

  • Measuring range passive output:
    • -40 to 230°F (-40 to 110°C)
    • -40 to 302°F (-40 to 150°C) (Pt and Ni T-sensors)
  • Measuring range active output:
    • Duct sensor: -40 to 230°F (-40 to 110°C)
    • Immersion sensor: -40 to 302°F (-40 to 150°C)
  • Operating temp:
    • Duct sensor (probe): -40 to 230°F (-40 to 110°C)
    • Immersion sensor (probe): -40 to 302°F (-40 to 150°C)
    • Electronics: -40 to 158°F (-40 to 70°C)
  • Accuracy: ±0.3 °C (±0.54 °F)
  • IP65 / NEMA 4 protection class
  • 0 to 10V or 4-20mA outputs
  • 24 VAC/DC supply

The E+E EE431 Temperature Sensor is used for air temperature measurements in heating, ventilation and air conditioning systems. It can be installed either with mounting flange or via external mounting holes at the enclosure (duct sensor). For temperature measurements in liquids the temperature sensor EE431 is mounted with an immersion well (immersion sensor).

In addition to active outputs 0 to 10 V or 4-20 mA various types of sensing elements such as Pt1000, NTC10k or Ni1000 are available for passive temperature measurement. The innovative IP65 housing and the mounting concept allow for fast and easy installation.

Applications for the EE431 include:

  • Building automation
  • Process and climate control
  • Measurement in air and liquids

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+E Mounting Flange for EE431
E+E Mounting Flange for EE431

Clamp ring, special seal.

$20.00

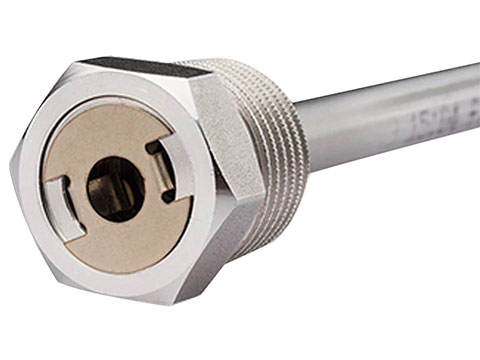

E+E Electronik Immersion Well for EE431
E+E Electronik Immersion Well for EE431

Threaded R 1/2in ISO & 1/2in NPT.

Starting at $31.00

Accessories

Please consider these optional accessories.

E+E HA011110 Plastic Conduit Adapter
E+E HA011110 Plastic Conduit Adapter

Conduit Adapter M16x1.5 to ½“ NPT.

$21.00
E+E HA011065 EE-PCA Cable
E+E HA011065 EE-PCA Cable

EE4x1 with analogue output.

$536.00
E+E V03 Power Supply
E+E V03 Power Supply

Power supply.

$267.00
