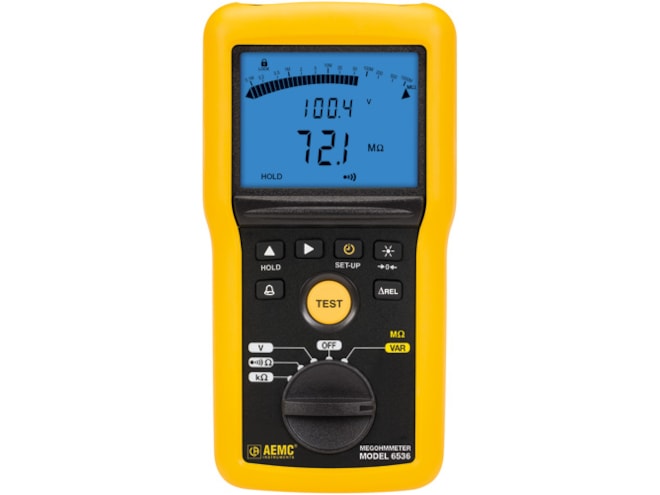

AEMC Model 6536 Megohmmeter

50V and 100V insulation test voltages, 20GΩ max insulation resistance, continuity tests at 20mA or 200mA.

$1,025.00 Found a better price? Let us match.

View Company Reviews
Part Number
  • 2155.56
Manufactured
Includes
Availability
  • Usually ships in 1-2 weeks
Product Family
Product Manual Product Specs (2 Files)

Features

  • True megohmmeter
  • 10 to 100V (variable) insulation and multi-function tester (resistance, continuity, voltage)
  • Variable 10 to 100V (1V increments) insulation test voltages
  • 20GΩ max insulation resistance
  • Timed test mode
  • Test lock feature
  • Continuity tests at 20mA or 200mA
  • Test lead resistance compensation
  • True RMS AC/DC Voltmeter up to 700V
  • Ohmmeter to 1000kΩ
  • Auto discharge after Insulation Test
  • Hold function to "freeze" readings
Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

The AEMC Model 6536 Megohmmeter is a handheld, battery powered, multi-function 100V digital insulation resistance tester. It is designed to measure insulation resistance, continuity, resistance and voltage. With a safety rating of 600V CAT IV and IP54, the Model 6536 performs insulation resistance at a variable voltage between 10 and 100V with a 1V increment measuring insulation values up to 20GΩ. Meter also incorporates a 700V AC & DC True RMS voltmeter and continuity testing with a selectable 20mA or 200mA test current. The Model 6536 includes a Timer and Lock function which allows the user to operate the unit hands free.

Automatic safety check protects user and meter with audiovisual signals and test inhibition when >25V is present on test sample. Alarms function is also standard.Large digital/analog multi-function display provides clear and easy readings enhanced by a bright blue electroluminescent backlight. A magnetic stand holds the meter to a metal surface or cabinet during the test.Optional Remote test probe accessory with flashlight simplifies repetitive testing and helps access hard-to-reach, poorly lit, test areas. Optional ESD floor test kit to test and verify flooring designed to control electrostatic discharge. The Model 6536 is designed for special applications where the voltage needs to be set accurately in 1V increments for testing.

Applications for the Model 6536 include:

  • Insulation measurement on communication cables, Ethernet cables and other low voltage AC and DC wiring
  • Insulation measurement on electronic components and circuits
  • Special applications in the aerospace and defense sectors where specified test voltages are required
  • Cables, small motors, pumps, transformers and industrial equipment
