2155.53

AEMC

6500 Series

Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Features

  • True megohmmeter
  • 1 kV insulation and multi-function tester
  • Resistance, capacitance, continuity, frequency and voltage tests
  • 50V, 100V, 250V, 500V and 1000V insulation test voltages
  • 200GΩ max insulation resistance
  • DAR and PI ratios calculated
  • Timed test mode
  • Test lock feature
  • Continuity tests at 20mA or 200mA
  • Test lead resistance compensation
  • rue RMS AC/DC Voltmeter up to 700V
  • Ohmmeter to 1000kΩ
  • Capacitance to 10µf
  • Frequency measurements from 15 to 800Hz
  • Auto discharge after Insulation Test
  • Hold function to "freeze" readings

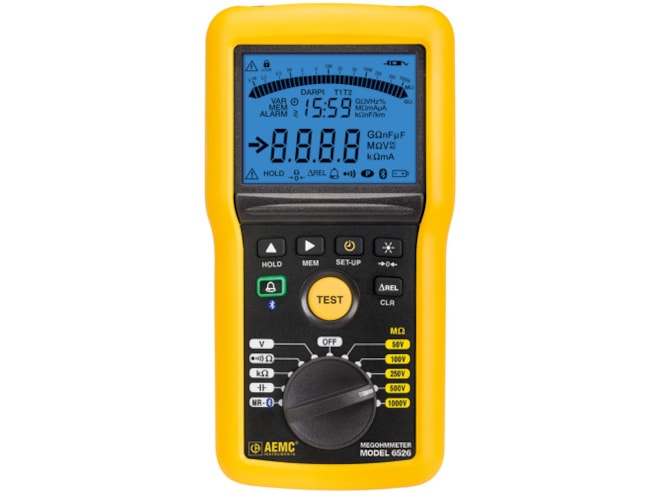

The AEMC Model 6526 1000V Megohmmeters is a handheld, battery powered, multi-function 1000V digital insulation resistance tester. It is designed to measure Insulation Resistance, Continuity, Resistance, Capacitance, Frequency and Voltage. With a safety rating of 600V CAT IV and IP 54, the Model 6526 performs insulation resistance at 50, 100, 250, 500 and 1000V measuring insulation values up to 200GΩ. Meter also incorporates a 700V AC & DC True RMS voltmeter and continuity testing with a selectable 20mA or 200mA test current.

The Model 6526 includes a Timer and Lock function which allows the user to operate the unit hands free. Automatic safety check protects user and meter with audiovisual signals and test inhibition when >25V is present on test sample. DAR, PI, Alarms and backlit Pass/Fail test function are standard. Large digital/analog multi-function display provides clear and easy readings enhanced by a bright blue electroluminescent backlight. A magnetic stand holds the meter to a metal surface or cabinet during the test. Optional Remote Test Probe accessory with flashlight simplifies repetitive testing and helps access hard-to-reach, poorly lit, test areas. With the possibility to save up to 1300 tests in memory and Bluetooth communication with DataView software, the Model 6526 will work well in industrial environments where a wide range of voltages, up to 1000V, are desired.

Applications for the 6526 includes:

  • Insulation measurement on communication cables, Ethernet cables and other low voltage AC and DC wiring
  • Insulation measurement on electronic components and circuits
  • Special applications in the aerospace and defense sectors where specified test voltages are required
  • Cables, small motors, pumps, transformers and industrial equipment
