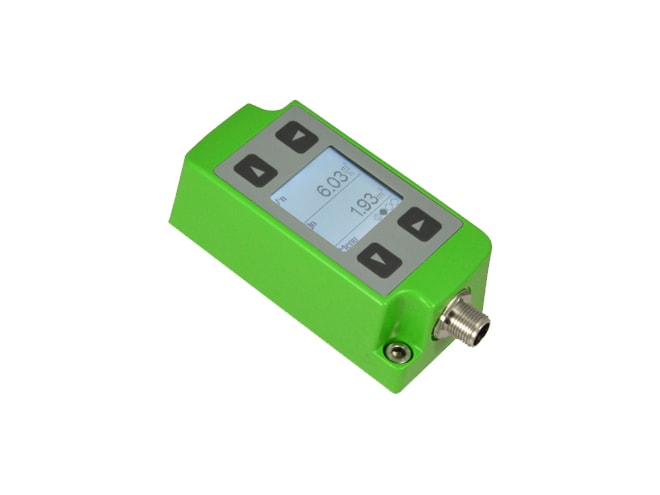

E+E EE741 Inline Flow Meter
Starting at $739.00

Not in stock. Usually ships in 4-6 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Features

  • Modular design
  • Hot film sensor element
  • Pipe sizes / ranges:
    • DN15: 0.12 to 44.88 SCFM (0.2 to 76.3 Nm3/h)
    • DN20: 0.24 to 79.77 SCFM (0.4 to 135.6 Nm3/h)
    • DN25: 0.36 to 124.71 SCFM (0.6 to 212 Nm3/h)
  • Application-specific adjustment under pressure
  • 0/4-20 mA, Pulse, Switch, Modbus RTU or M-Bus outputs
  • 18-30 VDC supply

The E+E EE741 Inline Flow Meter is dedicated for accurate metering and monitoring of compressed air and technical gases. With three different gauge mounting blocks, one and the same transmitter unit can be installed on DN15, DN20 and DN25 pipes.

The thermal measuring principle and the well-proven E+E hot film sensor element lead to best long-term stability and fast response time. Outstanding measuring accuracy, even in the lower measuring range is achieved by an application-specific multi-point factory adjustment, which is performed at 102 psi (7 bar). This allows reliable leak detection and corresponding energy savings. The construction of the EE741 is optimized for easy installation and maintenance.

Applications for the EE741 include:

  • Compressed air consumption measurement
  • Flow measurement of technical gases (O2, N2, Ar, CO2, He)
  • Nitrogen generators
  • Leak detection

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

E+E EE741 Mounting Block
Required mounting block for the EE741 Inline Flow Meter, BSP or NPT thread options
$140.00

Applications

This product can be used in the following applications:

Application Notes

Here's how some of our customers used this product.

Measuring Total Oxygen Consumption

The Background: Our customer is an industrial fabricator seeking a means to measure the amount of oxygen being used by the numerous cutting torches used at their facility.

The Problem: The shop floor includes many cutting torches which use a great deal of oxygen. The customer has never measured the total amount of oxygen used by these torches. In an effort to control costs, they now want to measure the total oxygen used.

The Solution: We recommended the E+E EE741 Inline Flow Meter which has been optimized for accurate metering and monitoring of compressed air and technical gases. The sensing element provides long-term stability and a fast response time. Outstanding measuring accuracy, even in the lower measuring range is achieved by an application-specific multi-point factory adjustment. This set-up has allowed the customer to carefully track their oxygen usage.
