Features

  • Hot film technology
  • Ranges include:
    • 0 to 2000 ft/min (0 to 10 m/s)
    • 0 to 3000 ft/min (0 to 15 m/s)
    • 0 to 4000 ft/min (0 to 20 m/s)
  • Output signal 4-20 mA or 0-10 V
  • High resistance to pollution
  • 1 or 4s response time selectable by jumpers
  • IP65 / NEMA 4 enclosure
  • Remote probe IP20
  • No moving parts

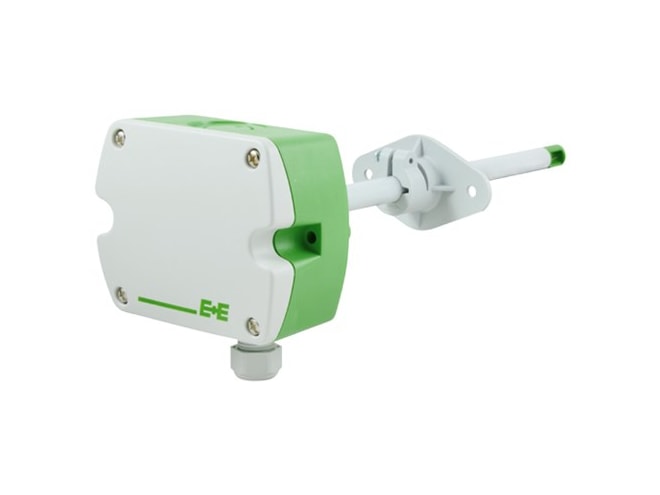

The E+E EE650 Air Velocity Transmitter is desegned for accurate and reliable measurements in building automation and ventilation applications. The EE650 features the new VTQ air velocity sensor element, which operates on the thermal anemometer principle and is manufactured by E+E in state-of-the-art thin film technology. Due to its innovative design, the VTQ sensor element is very robust and highly insensitive to pollution, which leads to outstanding long-term performance.

The measuring range 0 to 2000/3000/4000 ft/min (0 to 10/15/20 m/s), the output signal 4-20 mA or 0-10 V as well as the response time 1 or 4 seconds are selectable by jumpers. The enclosure design and the mounting flange included in the scope of supply allow for easy installation or replacement. The EE650 can be adjusted by the user via digital interface.

Typical applications for the EE650 include:

  • HVAC
  • Ventilation control
  • Ventilation systems

Applications

This product can be used in the following applications:
