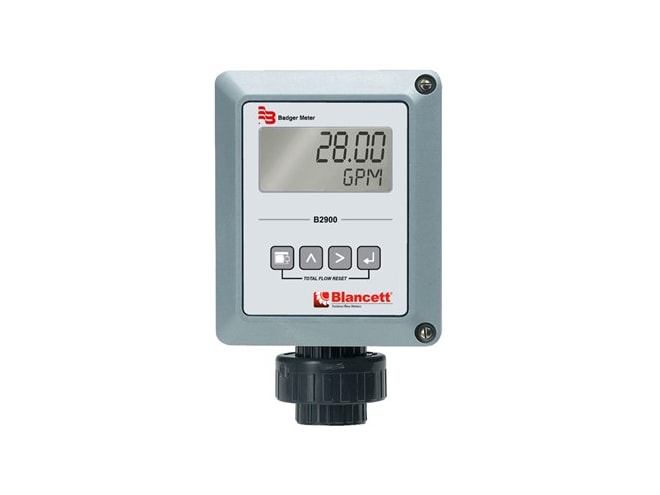

Blancett B2900 Flow Monitor
Offers advanced digital signal processing technology in a flexible, easy-to-access package
Need Help? Call a Flow Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Displays rate and total
- 8-digit by 3/4" display
- Greater control and greater visibility of batch operations
- Remote monitoring and process automation capabilities
- Displays rate & total, standard, batch & grand totals
- Hazardous location certified
The Blancett B2900 flow monitor offers advanced digital signal processing technology in a flexible, easy-to-access package at a very affordable price. Enclosed in a spacious polycarbonate NEMA 4X housing, the electronics are located on a single board, designed for straightforward and convenient field installation. The large enclosure provides more room for the user's hands and tools when wiring the monitor in the field. The B2900 enclosure features an LCD display with push button programming as well as a pre-drilled hole for external wiring connections, such as Modbus RTU and other outputs.
The Blancett B2900 flow monitor processes a frequency output from a flow sensor and interprets the signal to calculate flow rate and total flow simultaneously with 10-point linearization for improved accuracy. The B2900 monitor is ideal for use with the low-level frequency input signals that are typically found in Blancett turbine flow meters, but it can also be used with almost any flow sensor that produces a low amplitude AC output or contact closure signal. The monitor provides advanced communication capabilities over an RS485 bus using Modbus RTU and control outputs, which allows operators to connect meters to a network for process automation and remote flow monitoring. The Modbus RTU connection can be configured with user-selected baud rates.
To ensure security in remote applications, robust alarm parameters provide faster warning when something changes in the process or pipeline. The keypad display can be password protected to prevent unauthorized tampering. An added benefit for remote monitoring applications is that the B2900 monitor can be configured for both loop power and battery power, with the battery rated for a six year lifespan. The battery also acts as a backup power source in the event of loop power loss or interruption.
Blancett B2900 flow monitors are hazardous location certified (Class I Division 1, Groups C, D; Class II, Division 1 Groups E, F, G; Class III for US and Canada. Complies with UL 913 and CSA C22.2 No. 153) and are suitable for a variety of critical flow measurement applications in the oil and gas, and petrochemical industries. Ideal applications include secondary oil recovery, remediation and reclamation, fracture/refracture, coal bed methane, regulatory compliance and environmental accountability, aggressive chemical processing, and industrial batching and dispensing.
This product can be used in the following applications:
