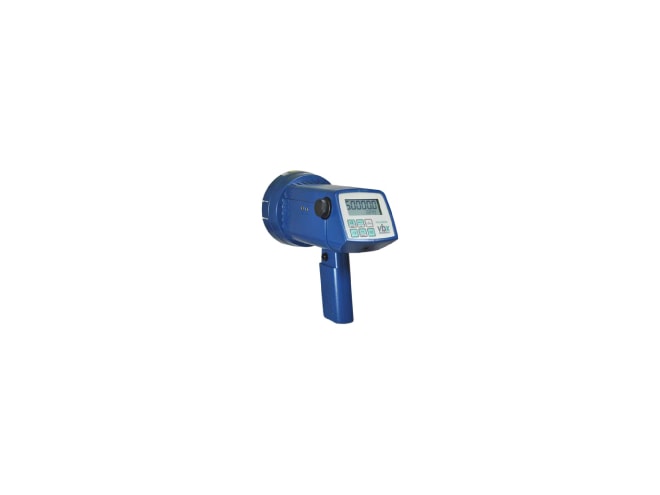

Monarch VBX Vibration Stroboscope
Starting at $2,195.00

Usually ships in 1-3 business days [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Accuracy: ±0.002% of setting ± least significant digit
  • 30‐50,000 FPM flash range
  • Compatible with CSI and SKF analyzers
  • Tracking filter maintains phase lock
  • Direct triggering from accelerometers
  • NIST traceable certificate included
  • Flash rate resolution: 0.01 to 1.0 FPM
  • Digital adjustment knob: 36 detents per revolution

The Monarch VBX Vibration Stroboscope is uniquely designed to provide precise, instantaneous synchronization to a number of data collectors and FFT analyzers triggered by an accelerometer. Built for portable applications, the VBX is the perfect lightweight phase analysis tool. VBX allows for the measurement of phase without stopping the machinery to install reflective tape. Phase analysis is quick and accurate using the filter bandwidth selector and the relative phase adjustment. Unique "Tracking Filter" maintains phase lock to input pulse. VBX can power and be triggered by accelerometers with or without data collectors.

Full kit contents:

  • 6220-033: Vibration Stroboscope - 30-50,000 FPM, with PSC-pbxU Power Supply/Recharger, 115/230 Vac, spare lamp with CA-4046-6 Accelerometer cable in Deluxe water tight, foam lined latching carrying case
  • 6220-032: Vibration Stroboscope - 30-50,000 FPM, with PSC-pbxU Power Supply/Recharger, 115/230 Vac, spare lamp and SKF CMVA data collector interface cable with CA-4046-6 Accelerometer cable in Deluxe water tight, foam lined latching carrying case
  • 6220-034: Vibration Stroboscope - 30-50,000 FPM, with PSC-pbxU Power Supply/Recharger, 115/230 Vac, spare lamp and CSI 2130 data collector interface cable with CA-4046-6 Accelerometer cable in Deluxe water tight, foam lined latching carrying case
  • 6220-031: Vibration Stroboscope - 30-50,000 FPM, with PSC-pbxU Power Supply/Recharger, 115/230 Vac, spare lamp and CSI 2120 data collector interface cable with CA-4046-6 Accelerometer cable in Deluxe water tight, foam lined latching carrying case

Applications

This product can be used in the following applications:
