  • Pressure range: Up to 15,000 psi
  • Accuracy:
    • B.F.S.L. ≤ 0.25% of full scale
    • NIST up to ±0.1% available in select ranges
  • Temperature compensated from -40 to 150° F (-40 to 65° C)
  • Temperature effects on zero & span: ±0.026% FSO/°C (±0.01% FSO/°F)
  • Overpressure: 1.5 times full scale (applies to sensor only, not fitting)
  • Burst pressure: 3 times full scale (applies to sensor only, not fitting)
  • 4-20 mA or 0-5 VDC output
  • 1502 pressure connection
  • Exceptional shock and vibration resistance
  • Life expectancy of 10 million cycles minimum
  • Frequency response less than 5mS
  • Shunt Cal: 100% of Full Scale
  • Supply voltage: 10-30 VDC on sensor
  • Wetted Material: NACE MR-01-75 and ISO 15156-3 compliant Nickel Alloy
  • Internet connectivity with RST-5003 (4-20mA version only)
  • CSA Intrinsically Safe
    • Class I, Div. 1, Groups C & D, EX ia IIB T4
    • Class I, Zone 0, AEx ia IIB T4
  • ATEX Intrinsically Safe (4-20mA)
    • CE 0344 EX II1G Ex ia IIB T4 Ga (Ta = -40°C to +85°C)
  • IECEx Intrinsically Safe (4-20mA)
    • EX ia IIB T4 Ga; Ta = -40°C to +85°C

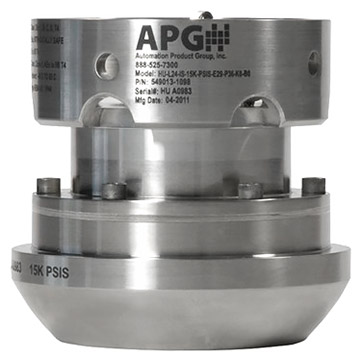

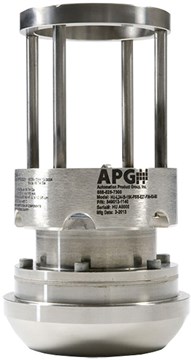

The APG 1502 HU hammer union pressure transducer includes a 1502 process connection and is built for extreme pressure, high vibration, and rough handling. The 1502 HU is designed to excel in the rugged environments of land based and offshore drilling installations including mud logging and measurement while drilling. The 1502 HU attention to detail includes a wider top for easy access to the connector, and drain holes to keep it from filling with water.

The APG 1502 HU hammer union pressure transducer has pressure ranges up to 15,000 psi and is accurate to 0.25% of full scale (B.F.S.L.). The welded body and durable electronics handle extreme vibration common in MWD and other high pressure processes. With the Shunt Cal feature, you can calibrate the transmitter to the right pressure range without having to pressure it up.

The 1502 HU is certified for global use in hazardous locations through CSA (Class 1, Div 1/Zone 0), ATEX (CE 0344 EX II1G Ex ia IIB T4 Ga), and IECEx (EX ia IIB T4 Ga). It's also NACE MR-01-75 and ISO 15156-3 compliant for sour gasses.
