Time Electronics 1068 Fixed Resistance Box

Name: Time Electronics 1068 Fixed Resistance Box
Price: 470.0 USD
Availability: BackOrder

Compact, resistance box with five fixed values designed for industrial, general laboratory, and education requirements.

$470.00

Effective May 2nd, 2025 Time Electronics has added a 10% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews

Part Number

1068

Manufactured

By Time Electronics

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 1-2 weeks

Product Manual Product Specs

Features

5 fixed resistance ranges: 1Ω, 10Ω, 100Ω, 1kΩ, 10kΩ
High accuracy
- 1Ω range: ±1mΩ
- 10Ω range: ±5mΩ
- 100Ω range: ±10mΩ
- 1kΩ range: ±100mΩ
- 10kΩ range: ±1Ω
Clear visual indication
Portable and compact
Simple operation
Robust casing
Ideal for education

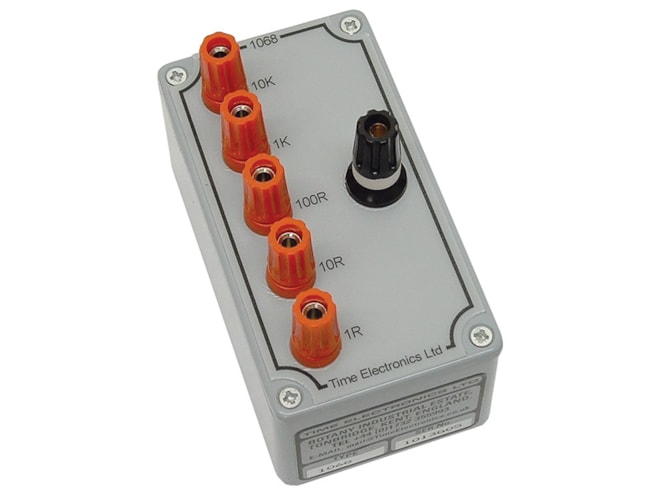

Time Electronics 1068 fixed resistance box is a compact, highly accurate instrument with five fixed resistance values designed for industrial, general laboratory, and education requirements.

Housed in a robust case the 1068 is easily portable and takes up minimal bench space. Being a low cost and simple operation instrument it is a popular model for physics and electronics laboratories in universities and schools.

The high accuracy obtained in the Time Electronics 1068 is achieved by the use of precision resistors. To select a value simply connect test leads to one of the fixed value resistors; 1Ω, 10Ω, 100Ω, 1kΩ, or 10kΩ.

Connection to the box is via 4mm binding posts and the values are clearly indicated beside each terminal.
