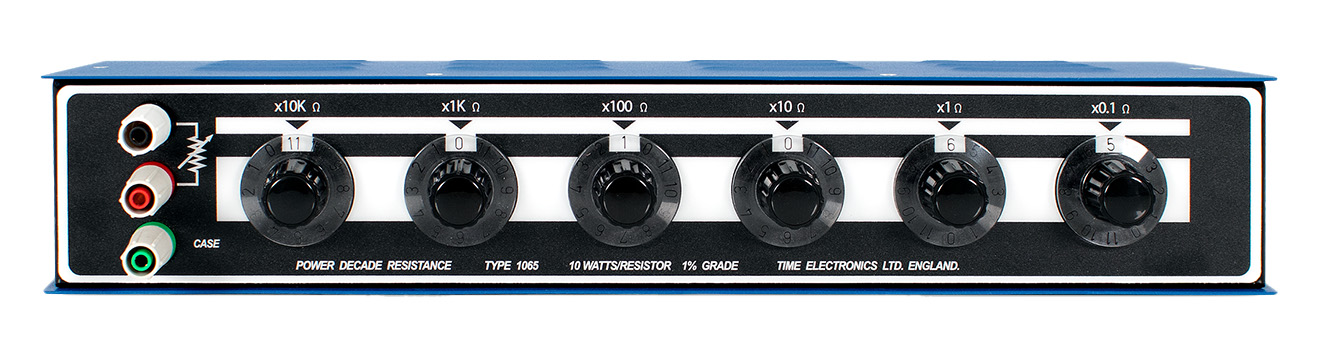

Time Electronics 1065 Decade Box
High accuracy resistance decade box with six decades over a range from 0.1Ω to 120kΩ
Need Help? Call a Calibration Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Ranges: 0.1Ω to 120kΩ
- Increment Steps: 0.1Ω
- 1% accuracy
- 10W per resistor dissipation
- Residual resistance < 20mΩ
- In-line readout
- Mechanically/electrically robust
- Fully screened
The Time Electronics 1065 resistance decade box is a high accuracy and high stability electrical testing device designed to meet the standard for industrial use and technical education purposes. Housed in a robust ventilated case, the 1065 can withstand arduous use whilst maintaining accuracy and reliability.
The Time Electronics 1065 resistance decade boxes feature a six decade design, allowing for easy variation of your unit's resistance over a range from 0.1Ω to 120kΩ. The slim line design means it takes up minimum bench space and is easily transportable. The high dissipation of 10 watt per resistor make the 1065 power resistance box suitable for power electronics applications, and the 500V maximum working voltage is ideal for select-on-test use in high voltage circuits.
Resistance is selected by dialing the value required using the 6 large rotary switches. This enables precise setting with a clear unambiguous indication. Switch contact resistance has been kept to a minimum by the use of multi-wafer switches, each with four parallel, silver-plated, self-cleaning contacts.
