Features

  • Compatible with serial, process signal, strain gauge, frequency and temperature input
  • Choice of 2.25, 4, 6 or 8 inch digit heights
  • 4 or 6 digit models with period or color dividers
  • Accuracy: ± 0.05% of range
  • Choice of normal or outside viewing brightness
  • RS232 or RS485 serial output
  • 4-20 mA, 0 to 10 V, or -10 to 10 V analog output
  • Choice of panel mount, wall mount or suspension mount
  • Choice of 95-264 Vac or 11-30 Vdc power
  • Sealed to NEMA-4 (IP65)
  • Only 3.0" (75 mm) deep
  • Programmable from front panel
  • Optional two or four 2A relay outputs, analog output, serial I/O
  • Detachable plug-in screw terminals

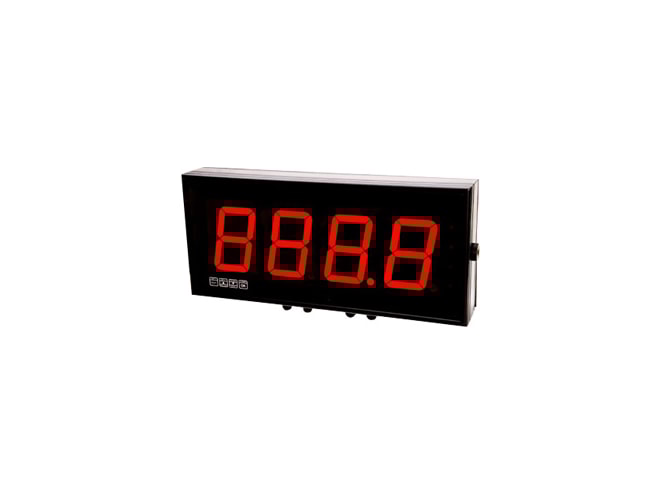

Laurel MAGNA series panel meters feature an oversized display with digits up to 8 inches in height allowing for viewing distances up to 320 feet. Suitable for indoor or outdoor use, the MAGNA series is available with standard brightness for viewing across the factory floor, or with outdoor brightness for viewing across an industrial yard, parking lot or roadway, for example to display vehicle load.

Laurel MAGNA series panel meters are available with four digit heights: 57 mm (2-1/4"), 102 mm (4.0"), 150 mm (5.9"), and 200 mm (7.9"). Solid segments are used for normal brightness 2.2" and 4.0" digits. Individual 5 mm LED pixels are used for larger digits and outdoor brightness versions. The number of digits can be 4, 6 or 8, depending on the display function.

MAGNA Series displays are optimized for different signal types:

  • Serial data from PCs, PLCs, serial output transmitters, and smart sensors
  • Process input (e.g., 4-20 mA)
  • Strain gauge / load cell input
  • Temperature input, Pt100 RTD or thermocouple
  • Pulse input for frequency or rate
  • Pulse input for total or quadrature position
  • Pulse input for operation as a clock or timer

Setting up the MAGNA is intuitive and utilizes of built-in front panel switches, which can be locked. It is also possible to remotely wire four pushbuttons to the display. The front panel is also protected to an IP65 (NEMA-4X) rating. Options include two or four 2A relays, an analog output, an RS232 or RS485 serial data output, and 95-264 Vac or 11-30 Vdc power. Available mounting options are panel mount, wall mount and suspension mount.
