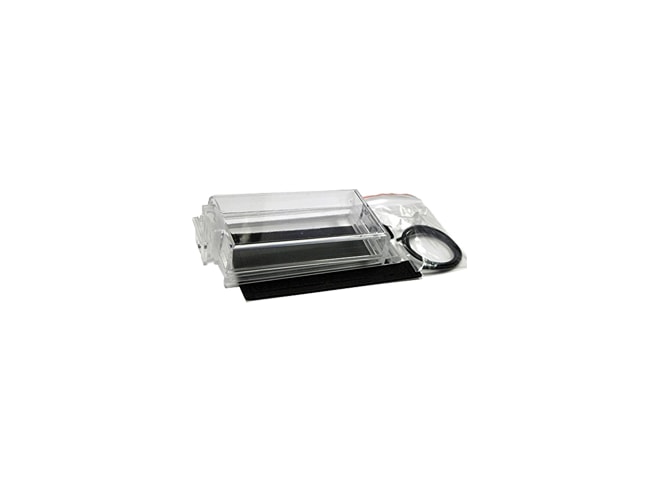

Laurel IPC Splash-Proof Cover

Protects 1/8 DIN instruments to NEMA-4 / IP67 from front.

Features

  • Meets NEMA 12 (IP52) when hinged door is snapped in place
  • Meets NEMA 4X (IP67) when door is clamped by a locking key
  • Fits all 1/8 DIN Laureates and most other 1/8 DIN instruments
  • Utilizes existing 1/8 DIN cutout -- no extra panel holes required
  • Made of high-impact polycarbonate -- no metal parts to corrode
  • Hinged door for easy access to instrument
  • Low cost

This product is an accessory for the following products:

Laurel Laureate AC Voltage & Current Panel Meter
Laurel Laureate AC Voltage & Current Panel Meter

True RMS AC voltage & current meter with 1 cycle update at 50/60 Hz.

Some Models in Stock
Starting at $367.00
Laurel Laureate DC Voltage & Current Panel Meter
Laurel Laureate DC Voltage & Current Panel Meter

DC voltage and current indicator with a DC signal conditioner board combine high accuracy, a high read rate and a wide range of output options.

Starting at $313.00
Laurel Laureate Load Cell & Microvolt Digital Panel Meter
Laurel Laureate Load Cell & Microvolt Digital Panel Meter

20 mV to 500 mV full-scale ranges, 4- or 6-wire connection.

Starting at $396.00
Laurel Laureate Ohm Panel Meter
Laurel Laureate Ohm Panel Meter

Optimized for high-speed, high-accuracy resistance measurements in a production environment.

Starting at $348.00
Laurel Laureate Process & Ratio Panel Meter
Laurel Laureate Process & Ratio Panel Meter

Digital panel meter with scalable readout & control outputs for pressure, level, flow, and other process signals.

Starting at $313.00
Laurel Laureate Process Meter & Flow Totalizer
Laurel Laureate Process Meter & Flow Totalizer

Rate, analog square root, batch control, time based on rate from 0-1 mA, 4-20 mA or 0-10 V signals.

Starting at $325.00
Laurel Laureate RTD Panel Meter
Laurel Laureate RTD Panel Meter

Highly accurate and repeatable panel meters factory calibrated for Pt 100, Pt 100 ANSI, Ni 120 and Cu 10 RTDs .

Starting at $313.00
Laurel Laureate Scale Panel Meter
Laurel Laureate Scale Panel Meter

Extremely accurate, digital panel meter with 5-digit resolution optimized for weighing applications.

Starting at $353.00
Laurel Laureate Thermocouple Panel Meter
Laurel Laureate Thermocouple Panel Meter

Factory calibrated to read type J, K, T, E, N, R and S thermocouples with exceptional accuracy and repeatability.

Starting at $313.00
Laurel 88-PRO Panel Meter
Laurel 88-PRO Panel Meter

Loop powered process meter with a jumper-selectable display range of up to ±199900.

RETIRED

The Laurel IPC Splash-proof Cover is a rugged, impact resistant, clear lens that fits over a 1/8 DIN instrument to make it dust and water proof from the front of the panel. Sealing meets NEMA 12 (IP52) standards for water splash and dust protection when the hinged door is simply snapped in place. Sealing meets NEMA 4 (IP67) standards for hose-directed water when the hinged door is further clamped down with a provided plastic locking key.

The IPC fits all Laurel 1/8 DIN instruments as well as 1/8 DIN instruments by other manufacturers, provided that instrument dimensions in front of the panel do not exceed 48 x 96 x 15 mm (1.89" x 3.78" x 0.59"). The IPC can be purchased as an add-on option for new instruments, or be fitted to existing installations.

The IPC assembly utilizes a clear base and clear door with a cam hinge. The hinge is captive when the base and meter are installed, and allows the door to be opened for easy access to the meter for programming or setpoint adjustment. The base can be sealed against the instrument panel by an O-ring or a self-adhesive neoprene gasket, both provided.

A capillary seal is formed between the door and the base by a tapered recess in the door and a tapered ridge in the base. Capillary action causes a small amount of water to be drawn in between the two surfaces, thereby producing a water-tight film around the sealing area. For applications where fluid residues are unacceptable, such as food processing, apply a light coating of clear silicone grease, or other approved sealant, to the mating grove to prevent any ingress of liquid and enable the cover to withstand steam cleaning.

The door is latched against the base by a locking tab when the door is snapped shut. Positive clamping of the door and protection against opening of the locking tab by hose-directed water are provided by a locking key, which remains in place to provide a much higher clamping force than the tab alone.

The Laurel IPC is easy to install. It utilizes the existing 1/8 DIN panel cutout (45 x 92 mm). No new panel holes are required.
