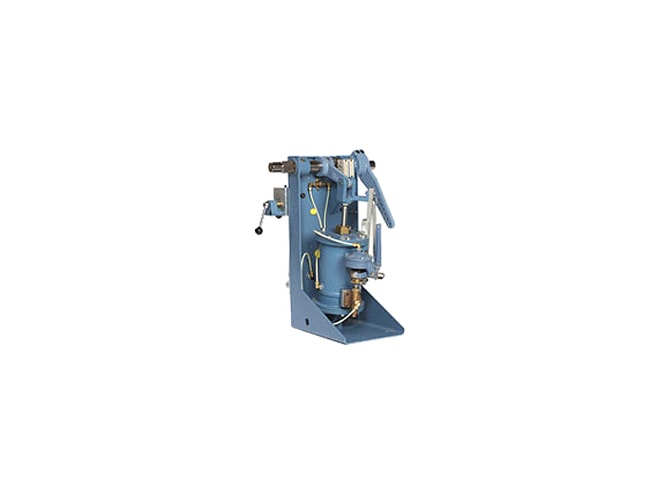

Rosemount Analytical 6x10 Torque Type Power Positioners

Hagan 6x10 Torque Type Damper Drives, floor mounted, repeatability 1% of full stroke or better.

Looking for spare parts and replacement parts? View the Product Accessories tab below.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 8-10 weeks
Product Manual Product Specs

Features

  • Floor mounted
  • Torque type damper drive
  • Brass or SS connections
  • Signal range options:
    • 3 to 15 psi
    • 0 to 30 psig
    • 4-20mA (VP mounted & piped)
  • Repeatability: 1% of full stroke or better
  • Full stroke time (unloaded): 5 sec or less
  • 10-inch stroke: (80° rotation)
  • Electrical connections: 16 gauge pigtail leads

The Rosemount Analytical 6 x 10 Power Positioners is a floor mounted torque style power positioner. The drive shaft is available as a left hand or right hand assembly.

The standard cam bar produces a straight line relationship. Shaping the cam bar in the field produces other relationships. Standard rotation (as supplied) moves the lever counterclockwise with increased loading pressure. Reverse rotation the lever moves clockwise with increased loading pressure when valve block and angling bar are reversed.

Applications for the 6 x 10 Power Positioners include:

  • Petrochemical
  • Coal-fired and natural gas fired applications
  • Steel mills
  • Refineries
Rosemount Analytical 1A97809G01 Spare Parts Kit
Rosemount Analytical 1A97809G01 Spare Parts Kit

Spare Parts Kit for the 6 x 10 Power Positioner.

$1,296.00
Rosemount Analytical 6639-005 Pilot Valve Assembly
Rosemount Analytical 6639-005 Pilot Valve Assembly

Pilot valve Assembly for the 6x10 Power Positioners.

$2,496.00
