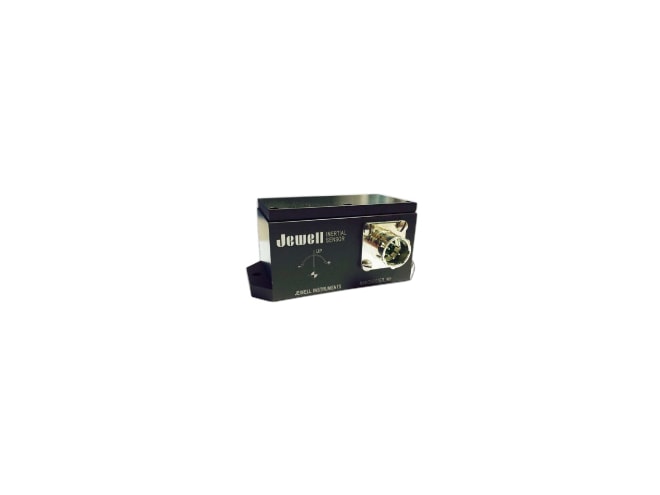

Jewell Instruments LSOX Precision Analog Inclinometer

High performance, single-axis tilt sensor designed for peak performance in extreme conditions.

Starting at $1,731.16

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 6-8 weeks
Product Specs (4 Files)

Features

  • Single axis
  • ±5V, 0 to 5V, 4-20mA outputs available
  • High accuracy
  • Pin terminal, connector, wire lead connection options
  • IP66 enclosure
  • CE mark available with 0 to 5V output
  • 15-30V or +/-15V DC Power Input
  • RoHS Compliant

The Jewel Instruments LSOX Precision Analog Inclinometer are rugged, high performance, single-axis tilt sensors designed for peak performance in extreme conditions. The fluid damped mechanism delivers superior noise rejection in high shock and vibration environments as well as excellent output stability. Units are available with a 6-pin connector, pin-terminals or flying leads. Available outputs include +/-5V, 0-5V and 4-20mA. Custom input ranges, filters and temperature compensation are also available on request.

Applications for the LSOX Series include:

  • High-precision Geotech
  • Oil and Gas/Riser Tilt Monitoring
  • Railroad MOW Equipment
  • Pavement Profiling Rigs
  • Vehicle Wheel Alignment
  • Robotics
