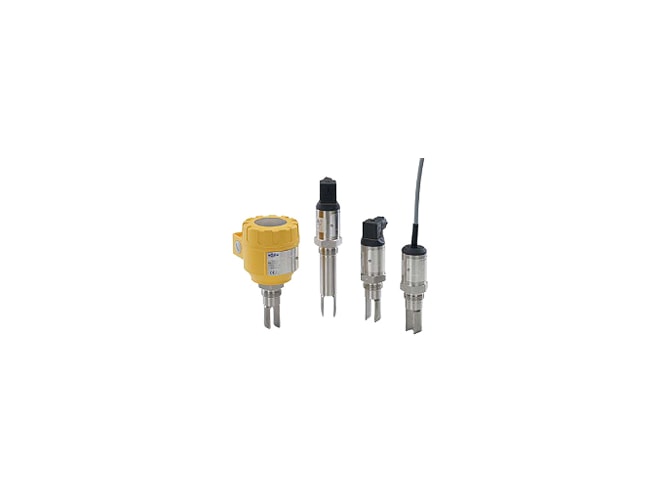

GF Signet 2280 Tuning Fork
Maintenance free vibrating principle, independent of the liquid conductivity, dielectric constant, viscosity, pressure and temperature
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Maintenance free vibrating principle
- Probe length: 69mm or 125mm (2.7" or 4.9")
- Bi-color LED indicator
- Selectable sensitivity
- Relay or electronic output
- Temperatures up to 130 degrees
- ATEX and WHG approvals
- IP67, 65/68 protection
- Stainless Steel DIN 1.4571 sensor
The GF Signet 2280 Tuning Fork are suitable for level detection of liquids or granular, powdered solids. Mounted on tanks filling / emptying can be controlled using these devices just as well they can generate fail-safe alarms providing overfill- or dry run protection.
The operation principle is based on the electronic circuit exciting the fork probe making it vibrate. As the medium reaches and covers the fork its vibration changes. The electronics senses the change of vibration and gives output signal after a selected delay.
Applications for the 2280 include:
This product can be used in the following applications:
