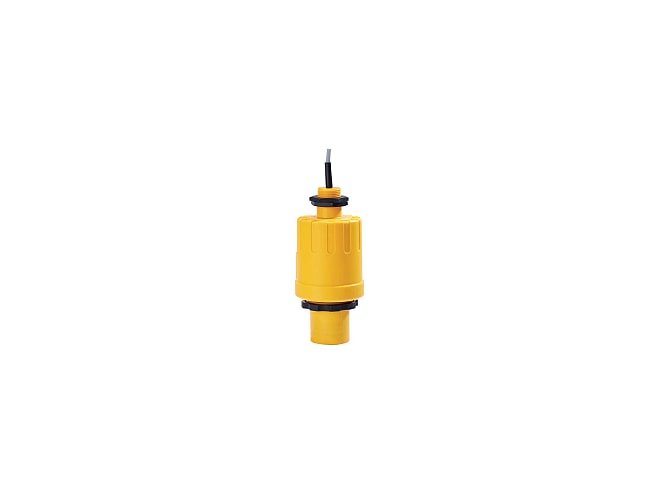

GF Signet 2270 Ultrasonic Level Sensor
2 wire compact sensor, for single and multiple tank applications, non-contact level measuring
Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET
- 2 wire compact sensor
- Non-contact level measuring
- Range: 0.2 to 4m / 0.65 to 13ft
- Narrow 5° beam angle
- Level, volume, and open channel flow
- Compact housing
- 32 points of linearization
- Fully temperature compensated electronics
- PP or PVDF sensor body
The GF Signet 2270 Ultrasonic Level Sensor is a rugged, high performance ultrasonic level measurement sensor, having transducer and processing electronics incorporated in one single housing. It provides all the sophisticated echo detection features of the well accepted 2260 Ultrasonic Level Transmitters.
For single and multiple tank applications 2-wire sensors are recommended using either HART protocol or 4 to 20 mA for the direct communication with a panel mount controller or a PLC.
Either for liquid level measurement in sumps or tanks, for tank contents measurement, or open channel flow measurement, the 2270 Level Sensors provide the answer. Sensing ranges up to 6 m (19.7 ft) are available. PP and PVDF sensor bodies provide best chemical resistance in applications where concentrated chemical shall be detected.
Applications for the 2270 include:
- River water
- Potable water
- Demineralized water
- Treated water
