Jewell Instruments DMI Series Inclinometers

Digital, single- or dual-axis, <0.001° resolution, ±0.0008°/°C bias temperature coefficient, MEMS sensor.

Retired products cannot be ordered

The Jewell Instruments JDI Series MEMS Inclinometers is the recommended replacement

View Company Reviews

Manufactured

By Jewell Instruments

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Specs

Features

Measurement ranges from ±10° to ±60°
Digital RS232, RS422 or RS485 output options
-40 to 185°F (-40 to 85°C) operating range
High shock & vibration tolerance
IP67 rated for waterproofing up to 1m
1m Cable (standard)

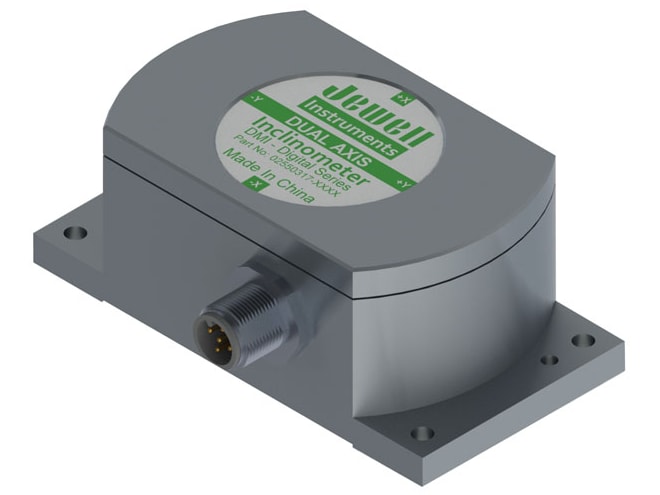

Jewell Instruments DMI series inclinometers are precision single or dual-axis analog instruments that incorporate temperature compensated, micro-machined MEMS capacitive technology. Designed for high reliability and low non-linearity, DMI series inclinometers are an excellent choice for a range of applications including: geotechnical monitoring, radar & vehicle platform leveling, drill rig alignment, offshore/subsea platform pitch & roll, industrial measurement & control, railway track alignment & maintenance pin out, or antenna position control

DMI series inclinometers are high sensitivity instruments available in ±10˚, ±30˚, or ±60˚ ranges. Excellent for long term stability, the DMI series features a bias temperature coefficient of just ±0.0008°/°C. Either RS232, RS422 or RS485 digital output options are available. The instruments are designed with a high tolerance to shock and vibration and utilize 9 to 36 VDC input voltage.
