  1. Inertial Sensors
  2. Inclinometers

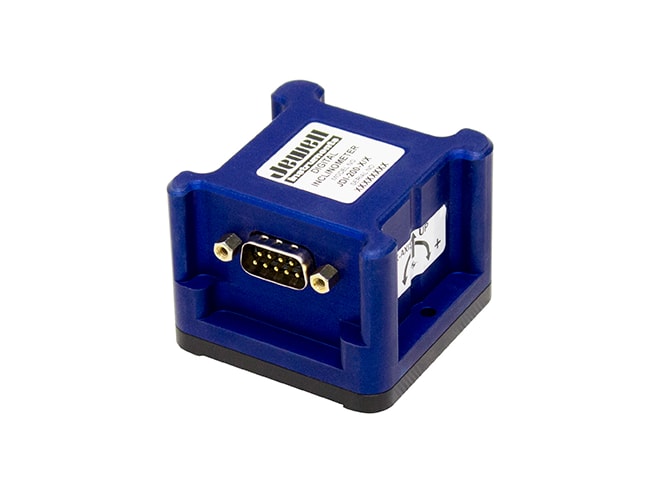

Jewell Instruments JDI Series MEMS Inclinometers

Single- or dual-axis digitally temperature-compensated inclinometer for industrial use.

Jewell Instruments JDI Series MEMS Inclinometers
Jewell Instruments JDI Series Inclinometers
Retired products cannot be ordered
Please call Instrumart for recommended replacement

View Company Reviewsby Trustpilot
Manufactured
  • By Jewell Instruments
Includes
  • FREE Ground Shipping
  • FREE Lifetime Tech Support
Product Specs
Questions?
Call 1-800-884-4967 or email sales@instrumart.com. Open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET.
Trustpilot

Overview

Features

  • ±1.0°, ±3.0°, ±14.5°, ±30.0° or ±60.0° range
  • -68 to 149°F (-20 to 65°C) compensated
  • RS485 digital output
  • Withstands up to 100g shock
  • IP67 seal
  • Integrated temperature sensor
  • Selectable filtering
  • RoHS Compliant

Description

Jewell Instruments JDI Series MEMS Inclinometers are ruggedized, digitally temperature compensated inclinometers available in single- (JDI-100) and dual- (JDI-200) axis configurations. They include digital output and full temperature compensation across all measuring ranges which enables the unit to perform to 0.005° accuracy.

The JDI series features standard ranges of ±1°, ±3°, ±14.5°, ±30° and ±60° with a 0.0001° digital resolution and RS485 interface output. These tilt sensors are RoHS compliant to satisfy environmental standards. With a lightweight aluminum enclosure and an IP67 seal, the JDI can serve a diverse number of OEM and industrial applications.

Jewell Instruments JDI Series MEMS Inclinometer Applications

  • Industrial automation & control
  • Construction & agricultural equipment
  • Solar tracking
  • Mobile cranes
  • Platform leveling/positioning
  • Mobile radar equipment
  • Bridge monitoring

Documents

Spec Sheets

  • Jewell Instruments JDI Series Inclinometer Datasheet PDF (442 KB)

Links

  • All possible part numbers

Accessories

Jewell Instruments 65052-01 Connector Hood for D-sub 9-Pin Connector
Jewell Instruments 65052-01 Connector Hood for D-sub 9-Pin Connector

$18.00
Jewell Instruments 65050 Mating Female D-sub 9-Pin Connector
Jewell Instruments 65050 Mating Female D-sub 9-Pin Connector

$19.00
Jewell Instruments 95055 RS485 Cable with Leads
Jewell Instruments 95055 RS485 Cable with Leads

Select options for pricing
Jewell Instruments 95053 RS485 to USB Cable
Jewell Instruments 95053 RS485 to USB Cable

Select options for pricing
