$11,395.00
$10,825.25

2136.03

AEMC

Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Features

  • 4-Pole (4-Point) Fall-of-Potential measurement
  • 3-Point Fall-of-Potential measurement
  • 3-Point earth coupling measurement
  • Manual or automatic frequency scan
  • Earth coupling testing
  • Selectable test voltage 16 or 32V
  • Up to 250mA test current
  • 2- and 4-Wire DC resistance measurement
  • Ground Resistance with 2 clamps (no auxiliary rods)
  • Includes DataView software

What's in the Box

  • 6472 ground tester
  • 6474 Groundflex adapter interface
  • 500 foot ground testing reels and auxiliary probe
  • Four (4) GroundFlex® sensors (5m)

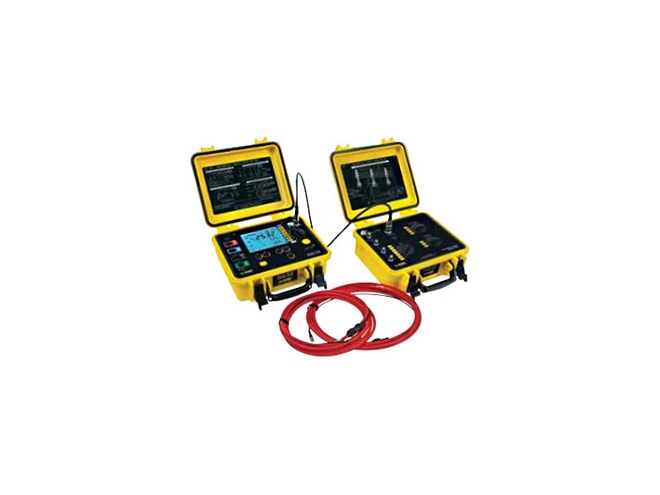

The AEMC 2136.03 GroundFlex Field Kit includes the GroundFlex® Adapter Model 6474 and Ground Resistance Tester Model 6472. This is the ONLY system on the market capable of testing ground resistance of individual power transmission tower legs, as well as total resistance without disconnecting the overhead ground wire – this alone is a huge time and money saver, not to mention a major safety improvement.

NOTE: The GroundFlex® Adapter Model 6474 can only be used with the Ground Tester Model 6472 Kit 500 ft.

Key features include testing both ground resistance of tower legs (individually and total) and overhead ground wires. This system tests leakage current through the tower legs and tests at frequencies up to 5kHz to profile impedance, which is important to characterize for lightning strikes.

The Ground Tester Model 6472 Kit-500 ft includes meter, rechargeable NiMH batteries, optical USB cable, power adapter 110/240V with power cord 115V US, two 500 ft color-coded leads on spools (red/blue), two 100 ft color-coded leads (hand tied, green/black), one 30 ft lead (green), four T-shaped auxiliary ground electrodes, one 100 ft AEMC® tape measure, DataView® software, ground tester workbook and user manual on USB stick, carrying bag for meter and carrying bag for kit.

The GroundFlex® Adapter Model 6474 includes GroundFlex® Adapter Model 6474, four GroundFlex® sensors (5m) with twelve color-coded rings, connection lead, two extension leads on H reel (black/green) with color-coded alligator clips, one extra black and green alligator clip, six BNC extension leads, calibration loop, three C-clamps, carrying case with wheels and handle for meters, one inverter 12Vdc to 120Vac 200 watt (vehicle use) and user manual.

AEMC 2135.44 Ground Rod Set
Ground Rod Set of 2, 17" Stainless Steel T-shaped Auxiliary Ground Electrodes
$149.00
AEMC 2135.87 GroundFlex Sensor
GroundFlex® (10m) Sensor for use only with Model 6474
$1,299.00
AEMC 2135.86 Extension Lead Cable
Lead BNC 150 ft (45m) M/F Extension Lead (may be used with Model 6474)
$99.00
AEMC 2135.73 GroundFlex Sensor Cable
5m GroundFlex Sensor only for use with Model 6474
$649.00
AEMC 2135.75 Connection Lead
Connection Lead for Model 6472/6474
$82.50
AEMC 2135.76 BNC Extension Lead
Replacement BNC 50 ft (15m) Extension Lead for use with Model 6474
$51.00
AEMC Replacement GroundFlex Rings
Replacement Set of 12, Color-coded GroundFlex® Rings
$10.50
AEMC Green Extension Lead
Green Extension Lead (5m) on H Reel
$39.00
AEMC Black Extension Lead
Replacement Black Extension Lead (5m) on H Reel for Model 6474
$39.00
AEMC Replacement C-Clamps
Replacement Set of 3, C-Clamps for the Model 6472/6474 Kit
$39.95
AEMC Replacement Calibration Loop
Replacement Calibration Loop for Model 6474
$139.95
AEMC 2135.83 Carrying Case
Replacement Carrying Case for Model 6474 (tray not included)
$895.00
AEMC 5000.13 Power Adapter
Power Adapter 110/240V and Power Cord 115V US for Ground Testers Model 6470, 6471 and 6472
$64.00
