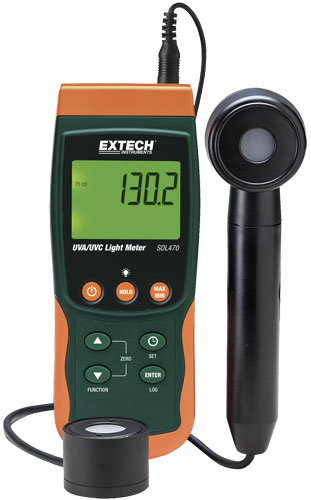

Extech SDL470 Light Meter

Name: Extech SDL470 Light Meter
Price: 969.0 USD
Availability: InStock

Compact light meter accurately measures both UVA and UVC and datalogs results.

Starting at $969.00 Found a better price? Let us match.

View Company Reviews

Manufactured

By Extech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Manufacturer has some models in stock. View available part numbers.

Product Manual Product Specs

Features

UVA probe captures long-wave 365nm UV irradiance measurements under a UVA (black light) source
UVC probe captures short-wave 254nm UV irradiance measurements under a UVC light source
Range:
- UVA: 2mW/cm2, 20mW/cm2 with ±4% accuracy FS
- UVC: 2mW/cm2, 20mW/cm2 with ±4% accuracy FS
Cosine correction filter and metal housing
Offset adjustment used for zero function or to make relative measurements
Adjustable data sampling rate: 1 to 3600 seconds
Memory stores 99 readings manually
Datalogging feature records readings with date and time stamp on an SD card (included) in Excel® format
Type K/J Thermocouple input for temperature measurements (probes sold separately)
Large backlit LCD display
Record/Recall MIN, MAX readings
Data Hold plus Auto power off with disable function

What's in the Box

Built-in tilt stand
SD memory card
UVA light sensor with protective cover
UVC light sensor
Hard case
Universal AC adaptor
6 AA batteries

The Extech SDL470 light meter is a compact instrument with probes to measure both UVA and UVC and data logging results. UVA is the long waves (365nm) of ultraviolet light while UVC is the short waves (254nm) of ultraviolet light. The SDL470 light meter is ideal for any application seeking to measure these wavelengths.

The Extech SDL470 light meter measures both UVA and UVC over ranges of 2mW/cm2 and 20mW/cm2. The internal data logger date/time stamps and stores files onto an SD card in MS Excel® format to make transferring, storing, and analyzing the data on your PC easier. Readings are shown on a large backlit LCD display. The meter also includes Min/Max and Data Hold functions and auto power off (with disable) to save battery life.

Spec Sheets

Extech SDL470 Light Meter Datasheet PDF (263 KB)

Manuals

Extech SDL470 Light Meter Manual PDF (484 KB)

Manufacturer Stock

This stock is typically available to ship in 3 - 5 working days.

Part Number	Price	Available
SDL470 Show Configuration	$969.00	45 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
