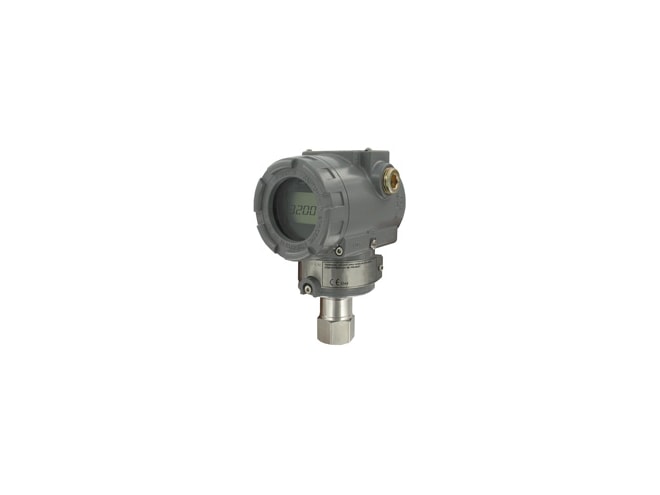

Mercoid 3200G Pressure Transmitter
Starting at $815.00

Not in stock. Usually ships in 4-6 business days [?]

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Features

  • For compatible gases, steam, liquids or vapors
  • Completely configurable using zero/span button (no calibrator required)
  • Rangeability: 100:1 turndown
  • High accuracy (±0.075%)
  • Automatic ambient temperature compensation
  • Fail-mode process function
  • -40 to 248°F (-40 to 120°C) temperature limits
  • Pressure range: -14.5 to 8500 psig
  • Stability: ±0.125% FSO/yr
  • Optional 5 digit LCD display
  • 4 to 20 mA /HART Communications
  • Electrical Connection: Two 1/2" female NPT conduit, screw terminal
  • Process Connection: 1/2" female NPT
  • Enclosure Rating: NEMA 4X (IP66) and explosion-proof for Class I, Div I, Groups A, B, C and D
  • Agency Approvals: CE, FM

The Mercoid 3200G Smart Pressure Transmitter is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and programmable using HART® Communication. The Series 3200G is capable of being configured with the zero and span buttons, a field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Series 3200G is FM approved for use in hazardous (Classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.

Software

ProComSol HART Communicator Software for PC
DevCom2000 software and a HART modem converts your PC into a full featured HART communicator at a fraction of the cost of a handheld unit
$800.00

Mounting Bracket

Dwyer A-630 Mounting Bracket
316SS angle bracket with bolts
$89.00
Dwyer A-631 Mounting Bracket
316SS flat bracket with bolts
$89.00

Accessories

Please consider these optional accessories.

W.E. Anderson BBV-0 Block Manifold
2-valve block manifold is designed to withstand repeated open/close operations
$91.00

Applications

This product can be used in the following applications:
