Starting at $92.00

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Available in 4 measurement options
    • State, event, & pulse
    • Light On/Off
    • Motor On/Off
    • Occupancy
  • "Time-of-use" data loggers
  • 84k or 346k measurement capacity
  • LCD displays Time on or % on
  • Auto-calibration & signal strength indicator
  • Flexible logger Start and Stop options
  • Compatible with HOBOware & HOBOware Pro software
    • For logger setup, graphing and analysis
  • Operating temperature range: -4 to 158ºF (-20 to 70ºC)

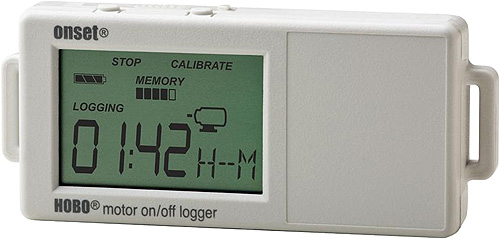

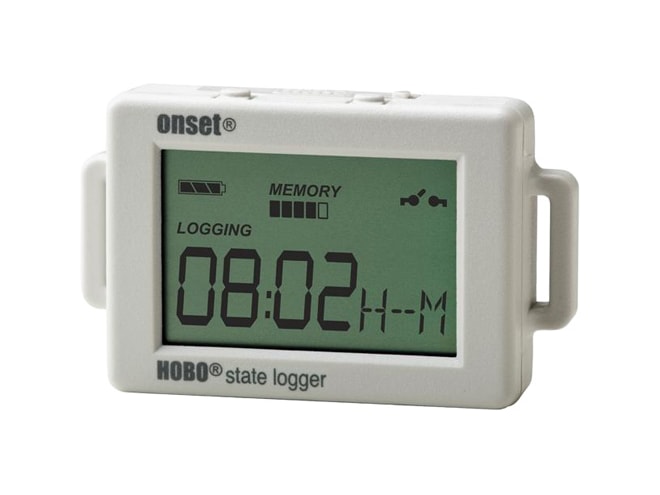

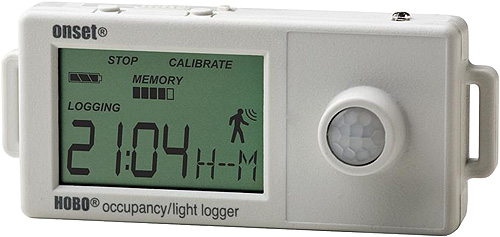

The HOBO UX90 Series Data Loggers is the industry's lowest-cost, most comprehensive family of "time-of-use" data loggers. The new toolbox suite includes LCD display data loggers for measuring motor on/off status, electronic pulses, state changes, and occupancy and light-use patterns. Use rare-earth magnets, 3M Command Strips, or mounting tabs to affix to a surface reliably.

Leveraging patent-pending technology, HOBO UX90 data loggers streamline energy audits and make field deployment fast and reliable. Accompanying HOBOware software also reduces deployment time. Time-saving features allow HOBO UX90 users to batch-configure and readout hundreds of loggers in a fraction of the time. Additionally, the software features a Bulk Export Tool that allows users to export data files to text format for use in spreadsheets and other programs.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

HOBO CABLE-USBMB USB Cable
USB logger-to-PC communications cable, six feet long and coated in black plastic
$10.00
In Stock

Cables

HOBO Voltage Input Cable
External input cable with 13mm (0.5") tinned braided wire leads, 1.8 m (6 foot) long cable
$10.00

Software

HOBO HOBOware Pro Software
Plot or export data to spreadsheets, time saving tools to fast setup, readout and export, compatible with all HOBO data loggers
$99.00
In Stock

Accessories

Please consider these optional accessories.

HOBO T-VER-E50B2 Power / Energy Meter
True RMS up to the 21st harmonic 60 Hz, One to three phase AC system
$625.00
HOBO WNB-3D WattNode 3-Phase Series Transducers
Measures 1, 2, or 3 phases in 2, 3, or 4 wire configurations, pulse output, use with wide variety of CT's
$269.00
HOBO Veris Kilowatt Hour 1-Phase / 3-Phase Transducers
300 or 800 amp sensors, split-core installation eliminates the need to remove conductors, accurate electronic pulse output
$660.00
In Stock
HOBO U-DT-1 Shuttle Data Transporter
Reads out data from systems in the field for transfer to a host computer
$281.00
HOBO WattNode 1 / 2 / 3 Phase Wye kWh Transducer Sensor
Measures 1, 2, or 3 phases in 2, 3, or 4 wire configurations
$229.00
HOBO CSV-A8 AC Current Switch Sensor
Measure run-time (time-of-use) of equipment when combined with compatible HOBO data logger
$92.00

Applications

This product can be used in the following applications:

Application Notes

Here's how some of our customers used this product.

Monitoring Motor Run Time

The Background: Our customer is a municipal swimming pool that needs to run the pump a specified amount of time each day. They require a method to monitor the motor run time of the pump to ensure they are meeting the time requirement.

The Problem: The pump has no additional contacts to provide input to a data logger to monitor the state of the motor.

The Solution: We recommended the HOBO UX90-004 which includes a built-in motor on/off sensor that detects the electromagnetic field of a motor as its running. By simply placing the UX90-004 in the vicinity of the pump motor it will recognize when the motor is running and log accordingly. This is a quick and easy way to monitor motor run time without the need to add contacts or additional wiring.

Part Number Price Available
UX90-002
Show Configuration
Base Price
$92.00
Measurements
Light On/Off
Maximum Sensor Detection Range
Only available with Occupancy measurement selection
Memory
84,000 measurements
Reconfigure
$92.00 2
UX90-001
Show Configuration
Base Price
$92.00
Measurements
State, event, & pulse
Maximum Sensor Detection Range
Only available with Occupancy measurement selection
Memory
84,000 measurements
Reconfigure
$92.00 1
UX90-004
Show Configuration
Base Price
$92.00
Measurements
Motor On/Off
Maximum Sensor Detection Range
Only available with Occupancy measurement selection
Memory
84,000 measurements
Reconfigure
$92.00 1

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 business days". Click here to select options
