Starting at $1,133.00

Not in stock. Usually ships in 1-2 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Volumetric flow measurement
  • 1/4 to 4 inch sizes available
  • Up to ±0.5% accuracy (±1.0% for MX06P, MX09P)
  • Flow ranges from 0.13GPH to 317GPM
  • Pressure rating up to 2000psi
  • Aluminum & stainless steel meter bodies
  • FEP/PTFE encapsulated seals
  • Switch Type NPN Open Collector
  • Suitable for use in the harshest outdoor environments
  • 2-year warranty

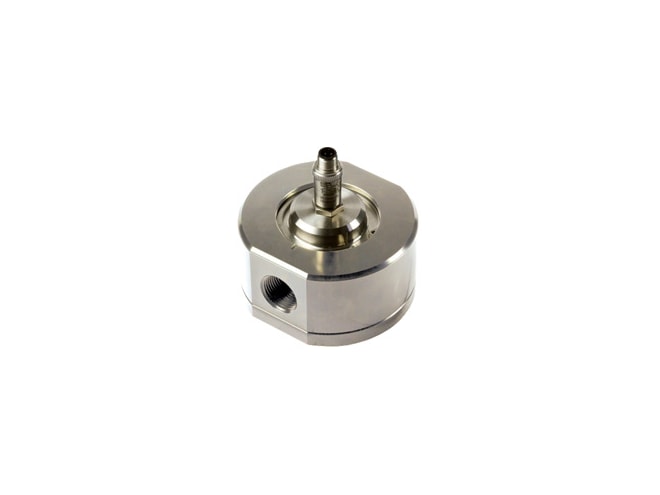

Macnaught MX Series hazardous area industrial meters are positive displacement oval gear flow meters that are designed to cover a broad range of industrial fluid measurement applications. Rated intrinsically safe or explosion proof, the MX Series is designed to endure the rigors of the heavy industry and presents an ideal solution for the precise transfer or dispensing (batching) of fluids in environments where there is the potential of exposure to flammable gases, or vapors.

Macnaught hazardous area industrial meters are constructed utilizing aluminum or stainless steel body suitable for use in the harshest environments. Their bearing-less PTFE/PPS rotors provide exceptionally low pressure drop and can even be used in gravity fed applications. This unique rotor design ensures minimal wear resulting in many years of reliable service. This approach has proven over time to provide consistently accurate flow measurement that is not affected by variations in temperature, viscosity, or pressure.

Another benefit of Macnaught's unique rotor design is simplicity of repair. With only two moving parts, the meters are simple to repair, require minimal repair parts stock, and can even be repaired inline, resulting in less downtime.

Oval gear flow meters are ideally suited to applications requiring accurate dispense quantities. Measurement of very low flow rates, pulsating flow, small batch sizes, viscous products, and non-conductive liquids are all ideal uses for oval gear meters. Because these meters don't require flow conditioning, no straight piping runs are required, so they can be used in installations where space is limited without effecting performance.

With a range of display, output and process connection options, Macnaught MX Series hazardous area industrial flow meters are the perfect choice for a variety of applications including:

  • Chemical batching
  • Additive injection
  • Hydraulic test stands
  • High temperature chemical processes
  • High pressure chemical processes
  • Food and beverage batch processes
  • Ethanol blending and production
  • Pulp and paper
Macnaught MX Series Pulsers
Blind pulse outputs compatible with all Macnaught MX Series flow meters
$75.00
In Stock
Macnaught MX Series Local Flow Displays
Meter mounted digital registers with a 12 or 17mm display
$564.00
Macnaught ER Series Remote Display
Remote mounted 17mm LCD for Macnaught MX series flow meters
$1,188.00
Macnaught PR Series Remote Display
Remote mounted 12mm LCD for Macnaught MX series flow meters with reed switch input
$654.00
Macnaught MX Series Flange Kits
Flange kits for Macnaught MX Series flow meters
$228.00
Macnaught Strainer / Air Eliminator Combo
Aluminum strainer / air eliminator combo for Macnaught MX series flow meters
$3,048.00
Macnaught Strainers
Mesh Y-strainers for Macnaught MX series flow meters
$62.00
Macnaught Test Certificates
Single or 3-point test certificates for Macnaught MX series flow meters
$145.00
