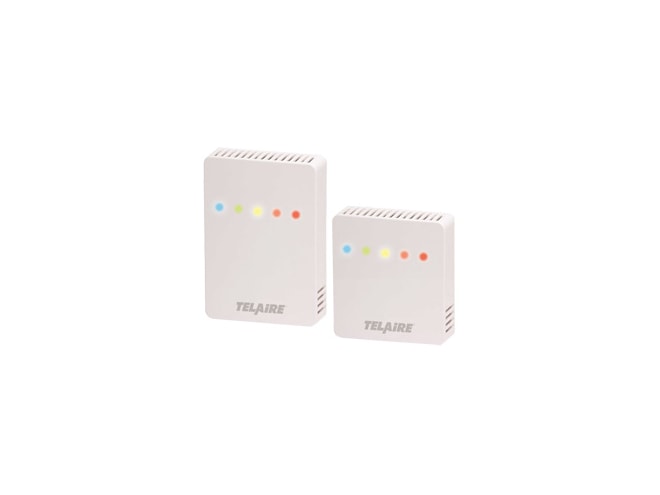

Telaire T5100-LED CO2 Transmitter
Starting at $285.12
Starting at $228.10

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Non-dispersive infrared (NDIR) sensor
  • Measurement Range: 0 to 2000 ppm
  • Accuracy: 30 ppm or 3% of reading (whichever is higher)
  • Color LEDs in dot mode indicate the CO2 level
  • Patented, Absorption Infrared Gas sensing engine provides high accuracy in a compact low cost package
  • Patented ABC Logicâ„¢ self-calibration system eliminates the need for manual calibration in most applications
  • Lifetime CO2 calibration guarantee when using ABC Logicâ„¢
  • Mounting plate with two-piece terminal blocks provide quick, easy wiring
  • Gas permeable, water resistant CO2 diffusion filter prevents particulate and water contamination of the sensor
  • Locking screw secures cover and sensor to the mounting bracket for tamper resistance
  • Sensors are shipped factory calibrated
  • Modern enclosure
  • Low-cost
  • Reliable (20 years of low-cost infrared sensor manufacturing)
  • Available CO2 and Temperature output options: Voltage 0-10V or 0-5V (switch selectable) Or current 4-20 mA
  • UIP software compatible for customizations
  • CE, RoHS, REACH and WEEE compliant
  • Lifetime calibration warranty

The Telaire T5100-LED series is a new low cost, high performing CO2 transmitter for the building controls market. It works seamlessly with building automation systems, and allows you to simply and effectively control fresh air into a ventilated space to regulated standards, providing immediate energy savings.

With a range of 0 to 2000 ppm and an accuracy of 30 ppm or 3% of reading (whichever is higher), the T5100-LED incorporates color LEDs to indicate the CO2 level.

Software

Telaire Ventostat T2090 UIP software
Software allows you modify the standard settings on the Telaire T5100 and T8100 series
$101.51
$81.21
In Stock

Accessories

Please consider these optional accessories.

Telaire Model T1508 Aspiration Box
Lightweight, Durable Duct Mount Enclosure for CO2 Sensors
$184.80
$147.84
Telaire Model T1505 Enclosure
Waterproof Enclosure for Telaire 8000 Series CO2 Sensors
$163.68
$130.94
