Starting at $7,511.00

PGM-7340

RAE Systems

Not in stock. Usually ships in 2-3 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Due to restrictions on hazardous shipping, a $33 hazardous materials fee will be added & shipping may take longer

Features

  • Accurate VOC measurement in all operating conditions
    • 3-second response time
  • Easy access to lamp and sensor in seconds without tools
  • Patented sensor and lamp auto-cleaning reduces maintenance
  • Low Cost of Ownership: 3-year 10.6 eV lamp Warranty
  • 1 to 10,000ppm extended range with best in class linearity
  • Humidity compensation with integral humidity & temp sensors
  • Integrated Correction Factors list of 220 compounds
  • Includes flashlight for dark conditions
  • Large graphic display with LED backlight
    • Shows gas type, correction factor, & concentration
  • Rugged, IP67 housing for use in harsh environments

What's in the Box

  • Travel download charger
  • RAE UV lamp
  • Flex-l-probe
  • External filter
  • Rubber boot & straps
  • Alkaline battery adapter
  • Lamp cleaning & tool kit
  • Soft leather carrying case
  • VOC zeroing tube
  • Tube adapter
  • Tedlar bag
  • Resources CD-ROM
  • Manual

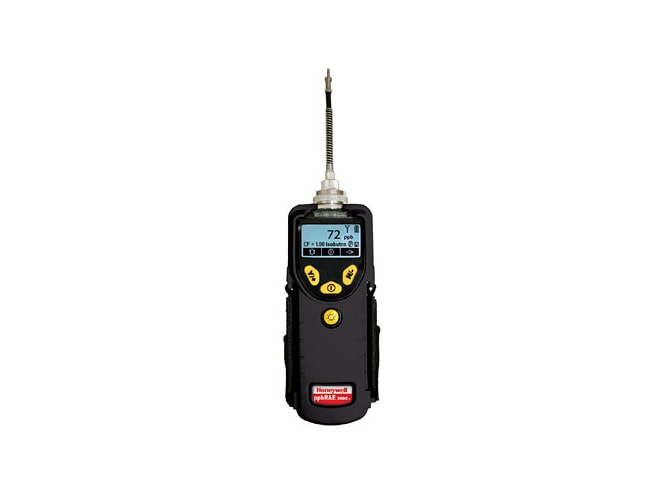

The RAE Systems ppbRAE 3000 is the most advanced handheld volatile organic compound (VOC) gas monitor on the market. Its Photoionization Detector's (PID) extended range of 1 ppb to 10,000 ppm makes it an ideal instrument for applications from HazMat/Homeland Security, industrial hygiene, to Indoor Air Quality and military applications.

The ppbRAE 3000 boasts a 3 second response time while including an integrated Correction Factors list that includes 220 compounds—more than any other PID. The large graphic display presents gas type, Correction Factor, and concentration.

The ppbRAE 3000 provides accurate VOC readings in all operating conditions. With rugged, IP67 rated housing, the unit is ready for use in harsh environments. Designed for easy use and maintenance, the ppbRAE 3000 provides easy access to the lamp and sensor with no tools needed. Patented sensor and lamp auto-cleaning reduces maintenance . The unit includes humidity compensation with integral humidity and temperature sensors to help maintain accuracy.

The RAE Systems ppbRAE 3000 is available with kit options:

  • Accessories Kit:
    • Hard transport case with pre-cut foam
    • Charging/download cradle (instead of travel charger)
    • 5-porous metal filters and O-rings
    • Gas outlet port adapter and tubing
  • Calibration Kit:
    • 10 ppm isobutylene calibration gas, 34L
    • Calibration regulator & flow controller

Batteries/Chargers

RAE Systems Li-ion Batteries
Rechargeable Lithium-ion battery (intrinsically safe)
$259.00
RAE Systems Battery Adapter
Alkaline battery adapter
$135.00
RAE Systems Charging Adapter
Universal wall charging adapter, 110 VAC to 240 VAC, 12 VDC with international plug kit
$90.00
RAE Systems Charging Cradle
Desktop Charging Cradle (no cables included)
$450.00
RAE Systems Travel Charger
Travel Charger (no cables included)
$315.00

Accessories

Please consider these optional accessories.

RAE Systems PID Lamps
Interchangeable 1/2 inch PID lamps
$248.00
RAE Systems PC Communications Cable
PC Communications Cable (USB 2.0, Male A to Male B)
$37.00
RAE Systems MultiRae Green Calibration Gas Cylinders
Select calibration gases for RAE Systems MultiRAE gas monitors stored in environmentally friendly refillable cylinders
$75.00
RAE Systems Constant-Flow Regulator
0.5 liter/min (CGA-600 Female) or 1 liter/min (C-10 Male) constant-flow regulator
$203.00
RAE Systems Demand-Flow Regulator
Demand-flow regulator for pumped instruments, CGA-600 female or C-10 male thread options
$473.00
