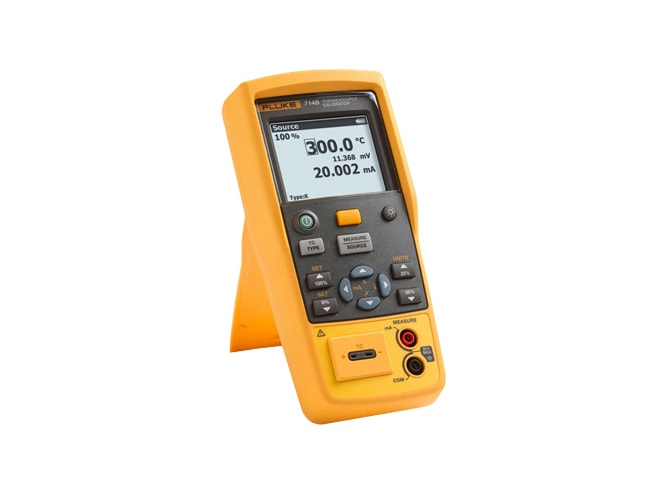

Fluke 714B Temperature Calibrator
Measures and simulates 17 different thermocouple types, measure 4 to 20 mA signals while simultaneously sourcing a temperature signal.
- FLUKE-714B/EN
- By Fluke
Overview
Features
- Measure and simulate 17 different thermocouple types
- Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal
- Configurable 0 % and 100 % source settings
- Linear ramp and 25 % step auto ramp
- Dual inputs and backlit display
- Power down settings
- Max voltage applied between terminal and earth: 30V
- Operating temp: 14 to 122°F (-10 to 50°C)
- Hanging tool designed in and included with every unit
What's in the Box
- Magnetic hanging tool
- Batteries
- Manual
- Traceable calibration cert
- Test leads
Description
The Fluke 714B Temperature Calibrator is designed for the temperature calibration professional that wants a highly accurate, easy-to-use and single function temperature calibrator. The 714B can measure and simulate 17 different thermocouple types. The unit also measures 4 to 20 mA signals while simultaneously sourcing a temperature signal.
The 714B features dual inputs and backlit display for easy interpretation of measurements. The power down setting remembered at power up for easy restart of tests. The maximum voltage applied between and terminal and earth or between any two terminals is 30V.
