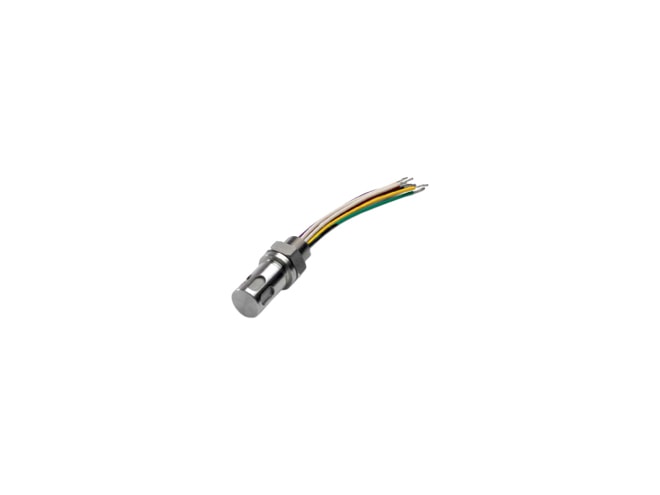

Michell Instruments PCMini70 RH and Temperature Mini Probe

Based on the interchangeable Hygrosmart module, OEM applications, compact AISI 316 housing, RH range 0 to 100%, temp range -22 to 185°F.

Features

  • Based on the interchangeable Hygrosmart module
  • Designed for OEM applications
  • Relative humidity:
    • 0 to 100% measuring range
    • less than ±2% RH (5–95% RH)
  • Temperature:
    • -22 to 185°F (-30 to 85°C) measuring range
    • ±0.2°C (±0.36°F) accuracy
  • Compact housing
  • Output signal: (RH) 0 to 1 V
  • Output signal: (T) 3-wire 1/3 DIN Pt100 direct
  • Supply voltage: 5 V DC ±5%

The Michell Instruments PCMini70 Relative Humidity and Temperature Mini Probe is based on the interchangeable Hygrosmart module. The PCMini70 is designed for OEM application and comes in compact housing.

The PCMini70 has a relative humidity measuring range of 0 to 100% with an accuracy of less than ±2% RH (5–95% RH). The temperature measuring range of -22 to 185°F (30 to 85°C) with an accuracy of ±0.36°F (±0.2°C). The probe is 53mm in length and has AISA 316 housing material.
