Starting at $2,866.00 Found a better price? Let us match.
  • Call for availability



  • Precision of 0.01% FS (100 ppm)
  • Stability of 0.01% FS per annum (100 ppm)
  • Extends calibration periods by a factor of 10
  • Deep Reactive Ion Etching (DRIE) silicon processing
  • Temp range: -40 to 125°C (-40 to 257°F)
  • Media isolated construction
  • Multiple output configurations
  • Wide selection of pressure & electrical connections
  • Up to 70 bar (1000 psi)
  • LabVIEW driver available for TERPS DPS versions

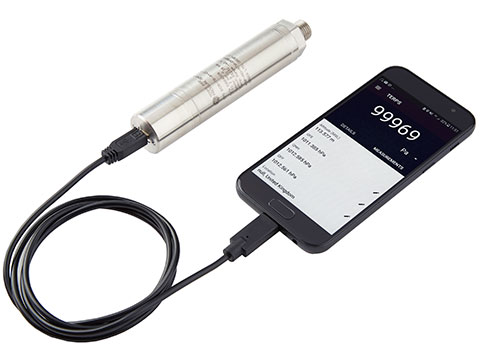

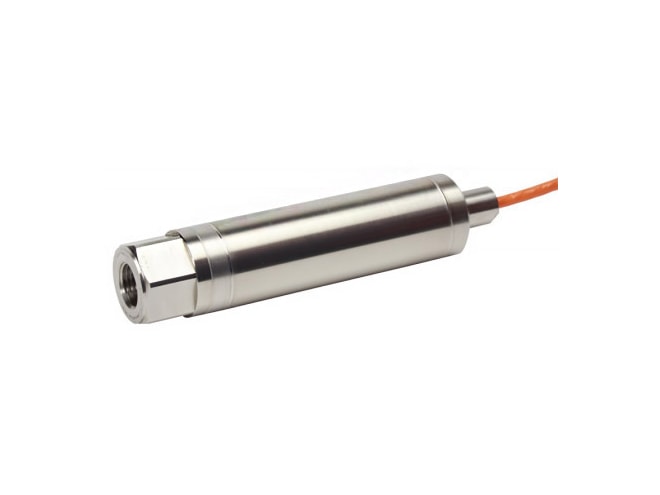

The Druck TERPS RPS/DPS 8000 Pressure Sensor is the first product to incorporate the new TERPS technology. TERPS is a resonant silicon pressure sensor technology platform that provides an order of magnitude greater accuracy and stability than current pressure measurement technologies available. The new TERPS technology also extends the pressure range capability to high pressures and by incorporating true pressure media isolation greatly improves its suitability for use in harsh environments.

The RPS/DPS 8000 product line takes advantage of best practices to offer a wide range of pressure and electrical connections to enable a level of customization for your specific requirements never before available in the performance class of this sensor.

The combination of the power of the TERPS technology and the quality, reliability and flexibility of the RPS/DPS 8000 Series offer a truly unique solution for high accuracy and high stability pressure measurement requirements.

The RPS/DPS 8000 can be used for a variety of applications requiring high levels of precision and stability including:

  • Encasement of historical documents
  • Barometers weather stations
  • Steam turbine optimization
  • Leak detection
  • Using pressure measurements to infer density
  • Tsunami level monitoring
  • Ship ballistic tank
  • ROV and AUV depth measurement
  • Sea bed level monitoring
  • Engine test monitoring
  • Fuel control turbine generators
  • Aero-test altitude monitoring
