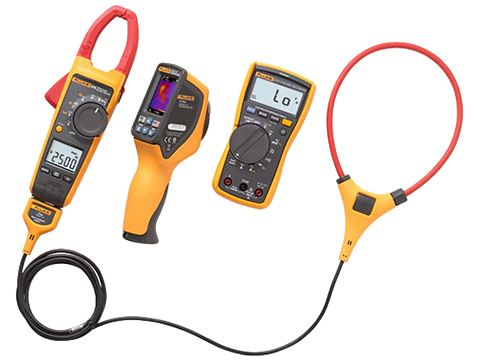

Fluke FLK-VT04 ELEC-KIT IR Thermometer Electrical Combo Kit
Combines the Fluke VT04 Infrared Thermometer, 376 Clamp Meter and the 117 Digital Multimeter.
Overview
Features
- VT04 Visual Infrared Thermometer
- 14 to 482°F (-10 to +250°C) temp range
- ±2°C or ±2% of reading in °C accuracy
- Built-in digital camera
- 376 Clamp Meter
- Measures up to 2500A with flex probe
- Diameter of Measurable Conductor: 1.3 inch max
- 1000A ac and dc current measurement
- 117 Digital Multimeter
- 600V max between terminal and earth ground
- 6 kV peak per IEC 61010-1 600 V CAT III
- 6,000 count display
Description
The Fluke FLK-VT04 ELEC-KIT Visual IR Thermometer Electrical Combo Kit combines the Fluke 117 Digital Multimeter, 376 Clamp Meter and VT04 that offers powerful infrared on the go. The FLK-VT04 ELEC-KIT is an ideal package if you are on a budget for tools.
The Fluke VT04 visual infrared thermometer bridges the gap between low cost IR thermometers and higher priced thermal imagers by combining the convenience of a spot thermometer with the visual advantage of an infrared camera to create a brand new tool category capable of instantly identifying the exact location of a problem. Featuring a highly portable, handheld design and simplicity of operation, the Fluke VT04 incorporates a built-in digital camera with a thermal map to identify problem areas. Exclusive technology allows users to overlay the digital image with the thermal image and blend the images in values of 0%, 25%, 50%, 75%, and full thermal with one button.
The Fluke 376 True RMS AC/DC clamp meter offers improved performance making it the perfect instrument for a wide range of current measurement situations. With True RMS voltage and current measurements, the Fluke 376 can read up to 1000V and 1000A in both AC and DC modes. An integrated low pass filter and state of the art signal processing allows you to use the Fluke 376 in noisy electrical environments while providing stable readings.
The Fluke 117 multimeter is the ideal meter for demanding settings like commercial buildings, hospitals, and schools. The 117 multimeter includes integrated non-contact voltage detection to help get the job done faster.
The VT04 includes:
- Hard case
- Hand strap
- Mini SD card and adapter
- SmartView® software on CD
- Lithium ion batteries and Micro USB Charger/Power Supply (including mains adapters)
- printed quick start guide
The 376 True RMS AC/DC clamp meter includes:
- 18" iFlex current probe
- Instruction card
- Safety information sheet
- Soft carrying case
- Test leads (TL75)
- (2) AA alkaline batteries
The 117 Digital Multimeter includes:
- TL75 test leads
- Holster
- User's manual
- 9V battery (installed)
