Starting at $589.00

Some models in stock. View available part numbers.

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Single or dual loop
  • 1/4 DIN format
  • Graphical text LCD display
  • Up to 9 outputs
  • Sampling rate: 10 per second
  • Optional USB port for configuration and data access
  • Optional Profiler with 256 segments shared in 64 programs
  • Optional Data logger with real time clock

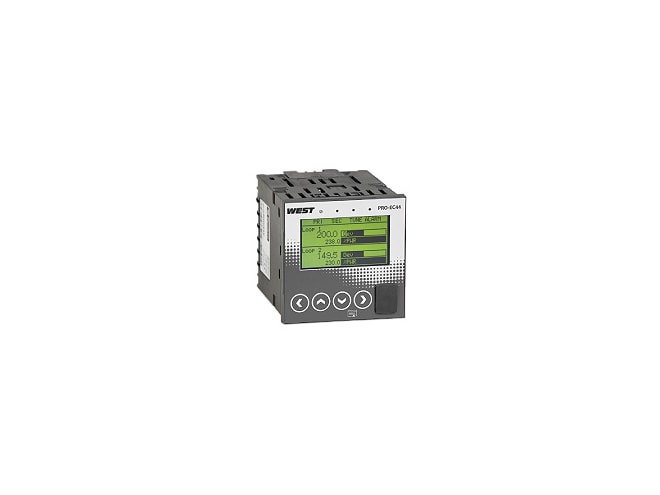

The West Pro-EC44 Temperature Controller is a 1/4 DIN process controller with graphical text display, advanced control capability and modular I/O options providing flexibility to fit wide range of industrial manufacturing and process applications.

The Pro-EC44 has 1 or 2 control loops, ON/OFF. PID heat only & heat/cool, valve motor drive and ratio cascade control functions. The seven alarms include absolute, deviation, rate of change, sensor break, recorder memory and power. The Pro-EC44 has up to 2 analogue inputs, 9 outputs, remote setpoint input, and 9 digital inputs.

The Pro-EC44 simplifies user setup with a step by step wizard configuration saving working through several menus for initial setup. A Logical menu structure for intuitive navigation allows fast changes and updates to individual settings. Configuration files can be downloaded to a controller using a flash memory stick via the front USB port allowing for fast programming. Settings can also be read via the USB port to clone additional devices or configure a replacement. Data log files can also be extracted locally via the USB for convenient access of process data.

Accessories

Please consider these optional accessories.

RS-485 to USB Converter
Two-wire RS485 to USB converter
$125.00
In Stock
Partlow West Controller Configurator Kit
Programming interface cable for the Partlow West Plus series & EC44 temperature controllers
$173.00
In Stock

Plug-In Option Slot 1

West PO1-R10 Option Board
Relay with reinforced isolation plug-in module slot 1
$42.00
In Stock
West PO1-S20 Option Board
SSR driver plug-in module slot 1
$42.00
In Stock
West PO1-C21 Option Board
Linear output plug-in module slot 1
$68.00
In Stock
West PO1-T80 Option Board
Triac plug-in module slot 1
$42.00

Plug-In Option Slot 2 or 3

West PO2-R10 Option Board
Relay with reinforced isolation plug-in module slots 2 and 3
$42.00
In Stock
West PO2-W09 Option Board
Dual relay plug-in module slots 2 and 3
$60.00
In Stock
West PO2-S20 Option Board
SSR driver plug-in module slots 2 and 3
$42.00
In Stock
West PO2-S22 Option Board
Dual SSR driver plug-in module slots 2 and 3
$60.00
West PO2-T80 Option Board
Triac plug-in module slots 2 and 3
$42.00
West PO2-W08 Option Board
Transmitter power supply plug-in module slot 2 or 3
$87.00

Plug-In Option Slot A

West PA1-W03 Option Board
Digital input plug-in module slot A
$90.00
In Stock
West PA1-W04 Option Board
Basic remote setpoint plug-in module slot A
$90.00
In Stock
West PA1-W06 Option Board
RS-485 communications plug-in module slot A
$90.00
In Stock
West PA1-ETH Option Board
Ethernet communications plug-in module slot A
$262.00
Part Number Price Available
EC440CP01M00000011
Show Configuration
Base Price
$589.00
Type
Controller
Profiler Option
Profiler (+$247.00)
Supply Voltage
100 to 240 VAC
Control Loops
One control loop
Base Option 1
Relay and linear DC output (+$63.00)
Base Option 2
Not fitted
Plug-in Module Slot 1
Not fitted
Plug-in Module Slot 2
Not fitted
Plug-in Module Slot 3
Not fitted
Plug-in Module Slot A
Not fitted
Option C
Not fitted
Reconfigure
$899.00 1

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
