MadgeTech RFRTDTemp2000A Wireless RTD Data Logger
Wireless two-way communication, view data in real-time, field upgradeable, accepts 2, 3 or 4 wire 100Ω platinum RTD's
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Wireless two way communication
- Temperature range: -392 to 1562°F (-200 to 850°C)
- Audible alarm and LED alarm indicator
- +/-0.05C Device Accuracy
- Direct USB Interface
- Reading rate:
- Fastest: 1 reading every second
- Slowest: 1 reading every 24 hours
- 21,504 reading memory
- Field upgradeable
What's in the Box
- NIST traceable calibration certificate

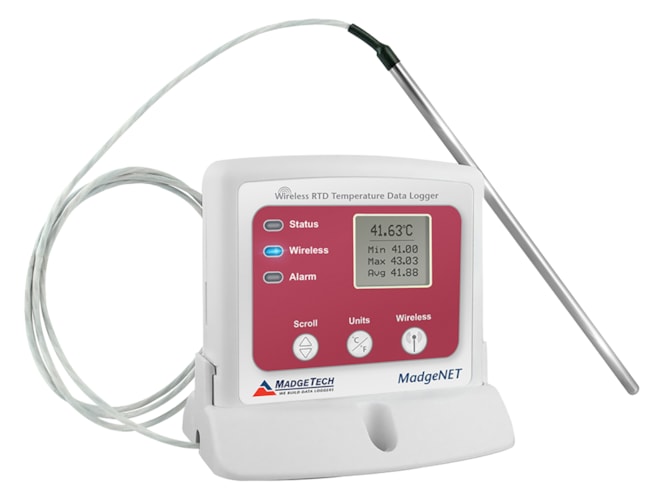

The MadgeTech RFRTDTemp2000A wireless RTD temperature data logger is an RTD-based, wireless temperature data logger with display. This data logger is ideal for applications that require high accuracy temperature monitoring such as within laboratories, pharmaceutical and biotech industries. The RFRTDTemp2000A accepts 2, 3 or 4 wire 100Ω platinum RTD's and features a device accuracy of +/-0.05°C. Starting, stopping and downloading from the device are all performed wirelessly using the RFC1000 wireless transceiver, allowing the user to spend less time maintaining the data logger. Data can be provided in real time back to a central PC, or the device may be downloaded at periodic intervals.
The convenient digital display provides the current reading as well as minimum, maximum and average statistics for a convenient snap shot of the logged data. For instant, out of range notification, an audible buzzer as well as LED alarm indicator notifies users when the temperature is above or below the user specified alarm setting. Through the software, email and text message alarms can also be sent.
The RFRTDTemp2000A can be used as a single, wireless data logging system, yet can be expanded to a large scale system, which can include hundreds of data loggers measuring a number of areas (additional MadgeTech wireless loggers and transceivers may be required). The RFRTDTemp2000A utilizes the new MadgeTech 4 Software. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis. The software features export to Excel, data annotation, digital calibration and more.
Applications for the MadgeTech RFRTDTemp2000A Wireless RTD Temperature Data Logger include:
- Clean rooms
- Laboratories and hospitals
- Medical and pharmaceutical
