Starting at $554.00



  • High accuracy & repeatability, direct reading flowmeter
  • No requirement for flow conditioning
  • Various rotor material options
  • Measures high & low viscosity liquids
  • Quadrature pulse output option & bi-directional flow
  • Integral 4-20mA output option
  • Optional Exd I/IIB approval (ATEX, IECEx)

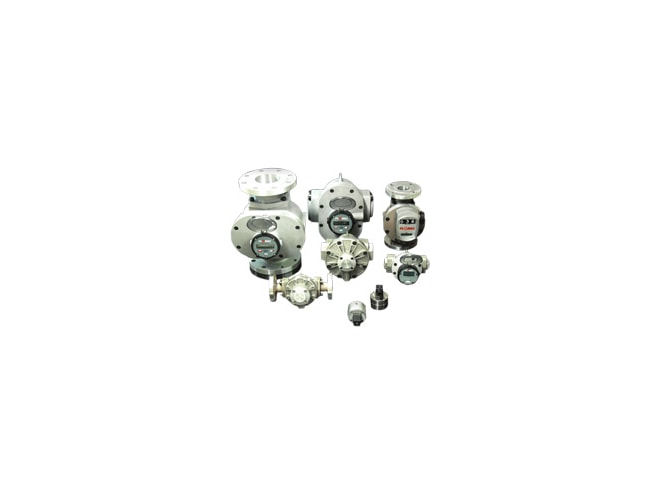

The GPI Flomec Pulse / Mechanical Flow Meters provide high accuracy, repeatability and have no requirement for flow conditioning (straight pipe runs). These Flomec small, medium and large capacity flowmeters offer a variety of rotor material options. With sizes ranging from 4mm up to 100mm these flow meters provide flow rates as low as 0.5 lph (0.16 gph) and as high as 2500 lph (gph).

Flomec small capacity flowmeters provide precise volumetric measurement of small quantities of liquids or low flows found in a broad range of industries including automotive, aviation, mining, power, chemical, pharmaceutical, food, paint, petroleum & environmental. Applications include the metering of additives for fuel, consumer products, water treatment & flotation cells, corrosion inhibitors, catalysts, emulsifiers, oils, grease, fragrances, adhesives, solvents, ink & insecticides.

Flomec medium capacity flowmeters provide precise volumetric flow measurement of clean liquids found in a broad range of industries including automotive, aviation, mining, power, chemical, pharmaceutical, food, paint & petroleum. Applications include the distribution of fuels, fuel oils, lubricants, alcohols, solvents, blending of bio & ethanol fuels, metering of chemicals, grease, adhesives, ink, insecticides & non-conductive liquids either pumped or gravity fed.

Flomec large capacity flowmeters are suited for receipt verification, loading, un-loading & distribution management at petroleum depots, mine sites, marine & aviation facilities. Common transfer applications involve fuels, oils, solvents, alcohols along with the blending of bio & ethanol fuels either pumped or gravity fed. The meters are compact & light weight in construction, important benefits when used in mobile installations or within confined spaces.


This product can be used in the following applications:

Here's how some of our customers use this product...

Measuring Flow Rates of Fluids with Changing Viscosity

The Background: A research lab associated with a major university needs a solution for measuring the flow of hot mineral oil.

The Problem: The heating and cooling of the mineral oil will change its viscosity necessitating a meter that will maintain its accuracy despite this change. The meter must also accurately measure low flow rates and be capable of handling process media temperatures up to 120˚C.

The Solution: The GPI Flowmec is an oval gear meter that will continue to measure accurately on fluids with changing viscosity. It is available with high temperature options making it suitable for media temperatures up to 150˚C. The basic electronics package has a pulse output that we paired with the Define TEX-CTR10 Panel Meter so the customer could totalize, read flow rates and output a 4-20mA signal to a data collection system.

In Stock

Part Number Price Available
$4,904.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
