Fluke 719Pro Electric Pressure Calibrator
Starting at $3,799.99

Usually ships in 3-4 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Features

  • Ranges:
    • -12 to 30 psi (-0.8 to 2 bar)
    • -12 to 150 psi (-0.8 to 10 bar)
    • -12 to 300 psi (-0.8 to 20 bar)
  • Accuracy:
    • ± 0.025 % of full scale, 6 months
    • ± 0.035 % of full scale, 1 year
  • One handed pressure calibration
  • Pump clean out ports
  • Fluid trap included
  • Operating temp: 14 to 122°F (-10 to 50°C)
  • Programmable pressure calibrator pump limit:
    • Eliminates over-pressurization
    • Allows user to program target pressures for pumping

What's in the Box

  • Test leads with alligator clips
  • Printed users manual
  • Users manual on CD-ROM in 14 languages
  • Fluid trap
  • Carrying case
  • 1/4 inch NPT to 1/4 inch ISO adapter
  • Hose kit with two 1/8in quick fit adapters & 1m of hose
  • Traceable Certificate of Calibration

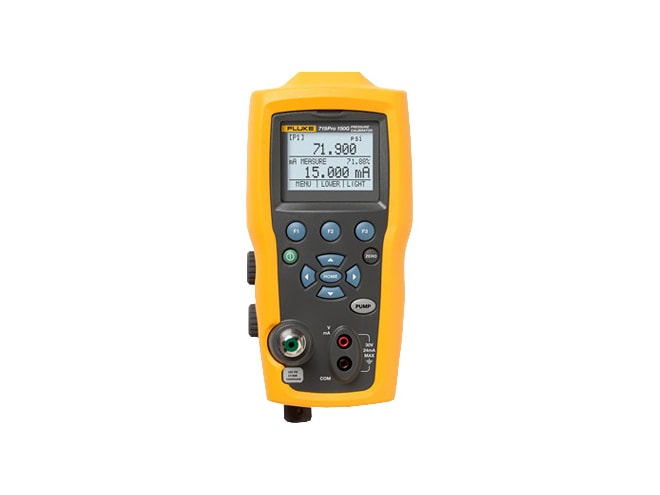

The Fluke 719Pro Electric Pressure Calibrator is the ideal test tool for calibrating high accuracy transmitters, pressure switches and pressure gauges. The 719Pro includes a full functioning loop calibrator that sources, simulates and measures mA signals and more. The large backlit screen displays three parameters at once:

  • Pressure measurement from internal or external sensor
  • Sourced/simulated or measured mA values
  • Temperature measured by optional RTD probe

The 719Pro has a unique integrated electric pump for one handed pressure calibration. This unit allows you to test pressure switches easily with easy-to-use switch test function. Extended pressure measurement range can be attained with use of any 700Pxx pressure modules. Pump cleanout ports reduce pump failures from moisture and fluid damage. Fluid trap included with the unit to mitigate chance of fluid damage in at-risk applications.

Probes

Fluke 720RTD Probe
$299.99
$269.99

Accessories

Please consider these optional accessories.

Fluke 750P Absolute Pressure Module
Wide pressure range selection, up to 1500 psia, digital communication to calibrators
$1,849.99
Fluke 750P Differential Pressure Modules
Differential pressure modules in 5 models with ranges up to 15 psi, digital communication to calibrators
$1,649.99
Fluke 750P Dual Pressure Module
Wide pressure ranges available, up to 300 psi, digital communication to calibrators
$1,849.99
Fluke 750P Gauge Pressure Module
±0.0175% reference uncertainty, 6-month and 1-year specifications, digital communication to calibrators
$1,649.99
Fluke 750P High Pressure Module
±0.0175% reference uncertainty, ranges up to 10000 psi (700 bar), digital communication to calibrators
$2,399.99
Fluke 750P Reference Pressure Modules
Wide variety of pressure ranges available, up to 10,000 psi, with digital communication to calibrators
$1,849.99
Fluke 750P Vacuum Pressure Module
Choose -5 psi (-350 mBar) or -15 psi (-1 bar) range, digital communication to calibrators
$1,849.99
Fluke 700PEx Intrinsically Safe Pressure Modules
Receive operating power from and send digital information to an intrinsically safe calibrator
$2,299.99
Fluke 71X-TRAP Liquid Trap
Liquid trap for the 719PRO electric pressure calibrator
$499.99
Fluke Professional Tool Backpack
Durable high-quality polyester, injection molded plastic bottom base, six storage compartments
$199.99
