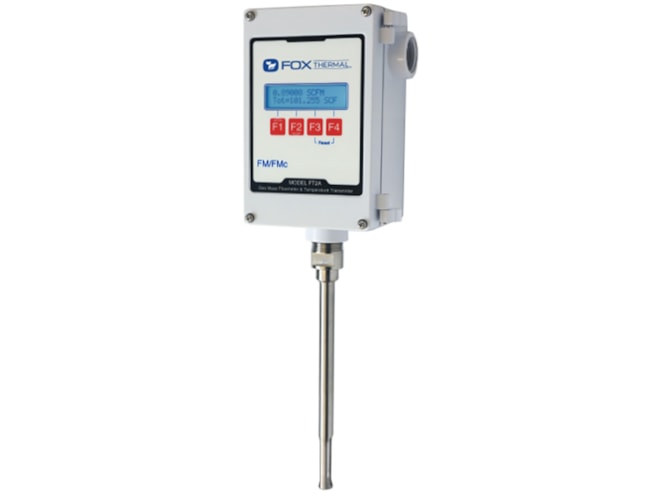

Fox Thermal FT2A Mass Flow Meter

Thermal mass flow meter and temperature transmitter with inline and insertion options for gas applications. Learn more...

Starting at $3,790.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Manual Product Specs

Features

  • SCFM, NM3/hr, Lbs/hr, Kg/hr and more
  • 100 to 1 turndown typical range
  • Measures process gas temperature
  • 4 to 20mA for flow & temperature; pulse output for flow/total
  • Communication options: USB port, Isolated RS485 Modbus, BACnet MS/TP, Profibus-DP, DeviceNet or Ethernet Modbus TCP
  • Insertion and in-line models
  • Welded 316 SS sensor
  • Hastelloy C276 sensor optional
  • Microprocessor based, field programmable electronics
  • On-board 2 line x 16 character, backlit display
  • NIST traceable calibration
  • Low-end sensitivity for leak detection
  • Negligible pressure drop
  • No moving parts design
  • FM & FMc Class I, II, III, Div 2, Groups A, B, C, D, E, F, G T4A hazardous locations
  • NEMA 4X and CE approved
A completed FT2A application data form is required to purchase this meter. We will contact you about your order.

The Fox Thermal FT2A mass flow meter and temperature transmitter measures two important process variables in one rugged instrument. The Fox FT2A measures gas flow rate in standard units without the need for temperature or pressure compensation. It provides isolated 4 to 20mA and pulse outputs for flow rate, and a 4 to 20mA output for process gas temperature. The pulse output is normally used for totalization.

Use the on-board 2 line x 16 character, backlit display to view flow rate, total, elapsed time, process gas temperature, and alarms. The display is also used in conjunction with the Configuration Panel to configure flow meter settings, pulse output frequency scaling, pipe area, zero flow cutoff, flow filtering (damping), display configurations, diagnostics and high or low alarm limits.

The Fox FT2A is available in both insertion and in-line models. The insertion meter is easily installed by drilling a 3/4" hole in the pipe and welding on a 3/4 inch NPT coupling. A Fox supplied compression fitting secures the probe in place. The inline model is available in 1/4 to 6 inch sizes and includes built in flow conditioners that eliminate the need for long, straight pipe runs. The meter can be ordered with flange or NPT end connections.

Both models are supplied with 316 stainless steel wetted materials standard or Hastelloy C-276 as an option (inline flow bodies also available in carbon steel). A USB port to connect to a computer or laptop is standard; interface options include RS485-Modbus, BACnet MS/TP, Profibus-DP, DeviceNet or Ethernet Modbus TCP.

Fox has certified cleaning and bagging procedures for flow meters to be used in oxygen applications.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Fox Thermal 101570 Remote Sensor Cable
Fox Thermal 101570 Remote Sensor Cable

5 conductor, 18 AWG PVC shielded cable for FT2 and FT3 remote sensors.

Starting at $20.00

Software

Fox Thermal FT2A View Software Download
Fox Thermal FT2A View Software Download

Application software program that runs on a PC and communicates with a Fox FT2A Thermal Mass Flow Meter.

$0.00

Mounting Bracket

Fox Thermal FT2A Remote Mounting Kit
Fox Thermal FT2A Remote Mounting Kit

Kit includes zinc plate, bracket mounting enclosure, U-bolts, nuts,bolts and drawing installations.

$200.00

Accessories

Please consider these optional accessories.

Fox Thermal 102878 Teflon Ferrule Kit
Fox Thermal 102878 Teflon Ferrule Kit

For FT2 and FT3 insertion mass flow meter.

$30.00
Fox Thermal Oxygen Service Prep
Fox Thermal Oxygen Service Prep

Have FT1, FT2 or FT3 cleaned and bagged for oxygen service.

$210.00
Fox Thermal 102299 Elbow Kit
Fox Thermal 102299 Elbow Kit

90 degree, makes housing upright in vertical pipes.

$70.00
Fox Thermal Certificate of Origin
Fox Thermal Certificate of Origin

Chamber of Commerce proof of origin.

In Stock
$60.00
Fox Thermal Certificate of Conformance
Fox Thermal Certificate of Conformance

$60.00
Fox Thermal FC20 Flow Conditioners
Fox Thermal FC20 Flow Conditioners

Tab-style conditioner installed between two flanges upstream of the flow meter that corrects irregular flow profile.

Starting at $660.00

This product can be used in the following applications:

Here's how some of our customers use this product...

Dual Gas Calibration

The Background: Our customer is an industrial facility that wants to monitor the amount of fuel used by piece of machinery.

The Problem: The piece of machinery in question can use both propane and natural gas. The fuel used at any given time depends on cost, availability and other factors. Most gas flow meters must be calibrated to a specific gas type. The customer does not want to have one flow meter for natural gas and another for propane.

The Solution: With the ability to be calibrated for 2 different gases the Fox Thermal FT2A allowed the customer to accurately meter fuel usage with a single meter regardless of the fuel being used. The user simply switched between the saved calibrations with the built in display interface.

N2 Gas Accountability

The Background: Our customer is large national laboratory that has an onsite nitrogen generator.

The Problem: The nitrogen generator is very costly to operate. Until now, the billing for the N2 gas was distributed evenly throughout each of the lab’s divisions. An audit found that $3 million in N2 gas went unclaimed, so the lab wants to install meters on each pipeline that supplies the different lab divisions to accurately bill for the amount of N2 gas used by each division.

The Solution: We recommended the Fox Thermal FT2A mass flow meter. The FT2A is ideal for this application as it can totalize the mass of flowing N2 despite changing temperatures and pressures. The meters were ordered with remote transmitters so the electronics can remain indoors, safe from the elements.
