FLIR DM93 Multimeter
Digital multimeter with advanced VFD filtering to analyze non-traditional sine waves & noisy signals found in VFD-controlled equipment
Need Help? Call a Temperature Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
Features
- AC/DC Voltage Range: 1000V, Accuracy: ±0.5%
- AC/DC Current Range: 10.000A, Accuracy: ±1% / ±0.2%
- Resistance: Range: 40.00MΩ, Accuracy: ±0.2%
- Continuity Threshold Range: 30Ω, Accuracy: ±0.2%
- Frequency Range: 100kHz, Accuracy: ±5 digits
- Capacitance Range: 40µF Max, Accuracy: ±0.9%
- Temperature Range: -328 to 2192°F, Accuracy: ±1%
- Diode Test Range: 2V, Accuracy: ±1.5%
- Rating: CAT IV-600V, CAT III-1000V
- Data recording: 20,000 points (125 days max)
- True RMS
- Powerful, integrated worklight
- VFD Mode filters variable frequency drive signals and provides accurate voltage and frequency measurements during maintenance and troubleshooting
- LoZ Mode eliminates ghost voltage readings associated with long-run applications
- Data Record feature captures electrical measurements and provides wireless data transfer
- FLIR Tools Mobile connects to a compatible smartphone and tablet via Bluetoot
- METERLiNK technology wirelessly integrates electrical readings on your infrared image with FLIR thermal cameras
- Analog bargraph
- Limited lifetime warranty

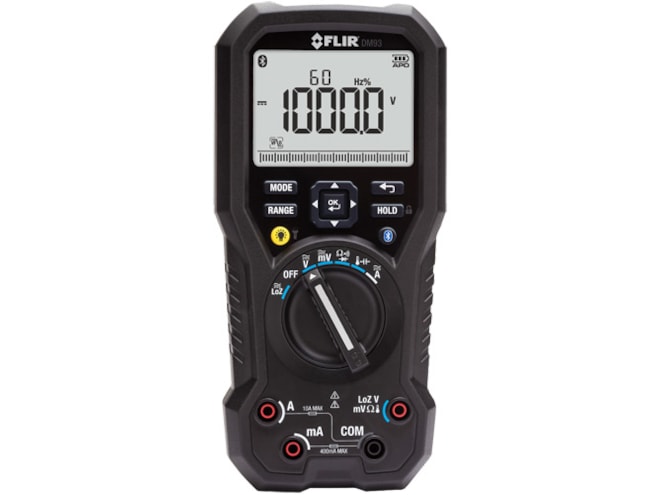

The FLIR DM93 multimeter is a true RMS industrial instrument that combines the standard features you expect to find on high-end multimeters with advanced VFD filtering to accurately analyze non-traditional sine waves and noisy signals found in VFD-controlled equipment. The end result is a powerful, versatile tool for electricians and technicians. The DM93 is backed by a limited lifetime warranty and rated CAT IV-600V and CAT III-1000V.
The FLIR DM93 multimeter includes all standard measurements including AC/DC current, AC/DC voltage, resistance, capacitance, continuity threshold, diode test, and frequency. The DM93 also includes two modes. The VFD Mode filters variable frequency drive signals and provides accurate voltage and frequency measurements during maintenance and troubleshooting. The LoZ Mode eliminates ghost voltage readings associated with long-run applications. A type K temperature probe is also included for making temperature readings.
The FLIR DM93 includes a powerful, built-in work light designed to help with clamping but powerful enough to serve as a primary work light. For applications in which connectivity to other instruments or devices is necessary, the FLIR DM93 includes two. METERLiNK technology is included which wirelessly integrates electrical readings on infrared images with FLIR Thermal Cameras. Also, the DM93 includes FLIR Tools Mobile which connects to compatible smartphones and tablets via Bluetooth. The FLIR DM93 clamp meter with IR thermometer also includes min/max/average, auto power off, data hold, relative, peak hold, battery status indicator, and integrated non-contact voltage detector, and a bright white LED backlight. The instrument can also store up to 20,000 data points in an internal memory
The FLIR DM93 clamp meter with IR thermometer ships complete with:
- 6 AAA batteries
- User manual/CD
- CAT IV silicon test leads
- Type K temperature probe (400°F)
- Magnetic hanging strap
- Alligator clips
- Limited lifetime warranty
