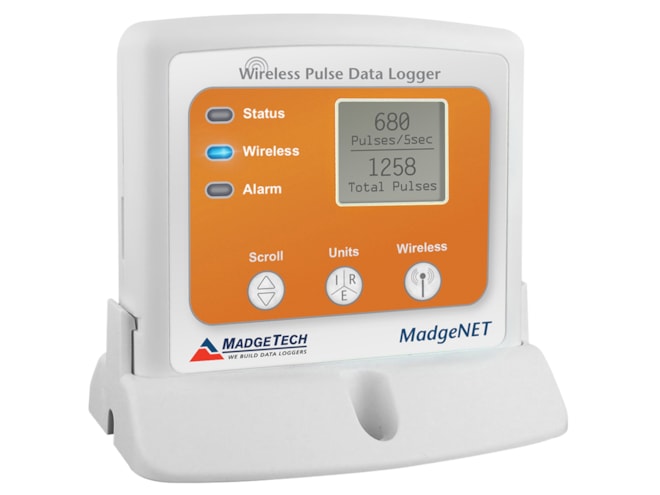

MadgeTech RFPulse2000A Data Logger
Wireless data logger records pulse output signals from various sensors such as flow meters & anemometers
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Wireless two-way communication
- 3 year typical battery life at 15 minute reading rate
- Battery life indicator
- Direct USB interface
- Configurable alarms
- Minimal long term maintenance
- Instant access to current reading on digital display
- User selected measurement unit
- 1 second reading rate up to 24 hours
- Stores 16,128 readings
- Rugged ABS plastic body
- RFC1000 is required for wireless communication
The MadgeTech RFPulse2000A data logger is a wireless device that records pulse output signals from various sensors such as flow meters and anemometers. When started, the data logger samples at 100Hz and at the user specified reading rate, recording the total number of pulses from the sample to memory.
An LCD screen provides instant access to the current reading, minimum, maximum, and average statistics. With the included software the device can be programmed to convert the pulse output into a different unit of measure such as gallons per minute or miles per hour. This information can be viewed on the screen of the data logger as well as in the software program.
The RFPulse2000A utilizes MadgeTech 4 Software. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis. The software features export to Excel®, data annotation, digital calibration and more.
This data logger is unique because it not only calculates pulse count, but it also calculates pulse rate. Engineering units can be programmed into the device as a rate, which allows the device to calculate the measurement unit in rates per second, minute, hour, or per day. This provides more useful statistics to the user when data logging over long periods of time.
The RFPulse2000A can be used as a standalone data logger or used with the RFC1000 wireless transceiver to wirelessly transmit data back to a central PC. The RFPulse2000A transmits up to 500ft line of sight to the RFC1000 transceiver. Multiple RFC1000 units can be used as repeaters and transmit up to 1000ft line of sight to other RFC1000 units. This allows the data to be sent over a greater distance.
The RFPulse2000A can be expanded to an even larger system including hundreds of data loggers measuring a number of areas (additional MadgeTech wireless loggers and transceivers may be required). Typical applications include wind speed, energy, and flow rate monitoring.
