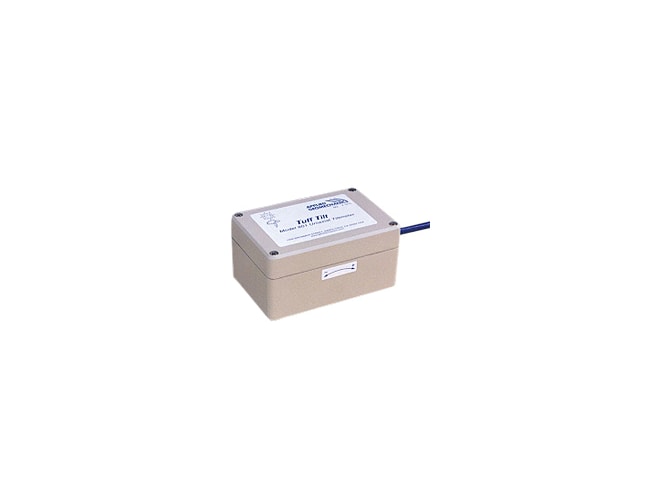

Jewell Instruments A801 Tuff Tilt Inclinometer

Uniaxial tiltmeter with gravity referenced electrolytic tilt transducer as the internal sensing element, ranges: ±0.5°/±3°/±50°.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Ranges: ±0.5°/±3°/±50° uniaxial
  • Resolution: 0.0001°/0.0006°/0.01°
  • ±5 VDC single-ended and ±10 VDC differential outputs
  • Widely used for structural monitoring
  • Weatherproof enclosure
  • Low thermal sensitivity
  • High long-term stability
  • Operating temp: -13 to 158°F (-25 to 70°C)

The Jewell Instruments A801 Tuff Tilt Inclinometer combines precision and durability in an economical instrument. It incorporates a gravity referenced electrolytic tilt transducer as the internal sensing element, delivering high dynamic range and long-term stability. Housed in a rugged weatherproof enclosure, this analog output tiltmeter may be used outdoors and in other wet environments.

A801 Tuff Tilt applications include:

  • Antenna leveling and tracking (Model 801-H)
  • Monitoring of bridges and structures (Model 801-S)
  • Rotary position of dam gates and other machinery (Model 801-W)
