Jewell Instruments A904 Clinometer Pak Inclinometer

Input range ±10°, ±25°, & ±50°, output ranges ±2.5V to 0 to 5V, temperature sensor, and damped options.

Select options for pricing

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Range: ±10°/±25°/±50°
  • Resolution: 0.005°/0.01°/0.02°
  • Output: ±2.5 VDC or 0 to 5 VDC
  • weatherproof NEMA 4X (IP65) enclosure
  • provides analog voltage signals for X tilt, Y tilt and temp
  • comes standard with a 10 ft (3m) cable

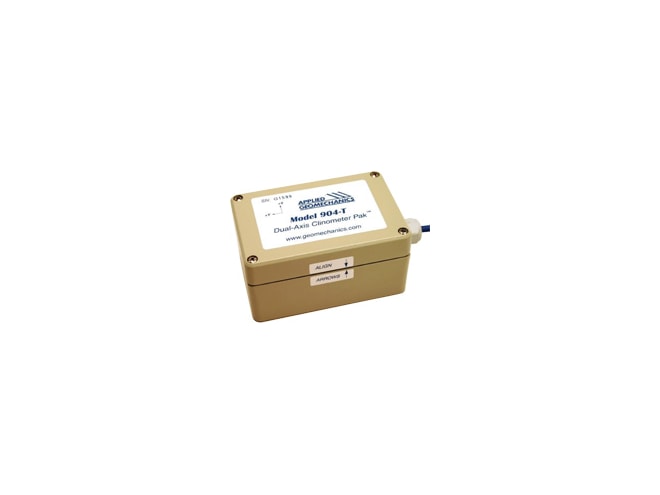

The Jewell Instruments A904 Clinometer Pak Inclinometer unites the Model 900 Biaxial Clinometer with a weatherproof NEMA 4X (IP65) enclosure for indoor or outdoor applications that demand mechanical and environmental protection. Choose the high-gain, standard or wide-angle version, each with a different angular range. Clinometer Pak's internal circuitry accepts a wide input voltage range and provides stable, low-impedance analog outputs for measurement by data loggers, PLC's, digital voltmeters and other recording devices. A temperature sensor is included as a standard feature. Options include viscous damping and 0-5 Volt output. This product is also available in a submersible stainless steel enclosure.
