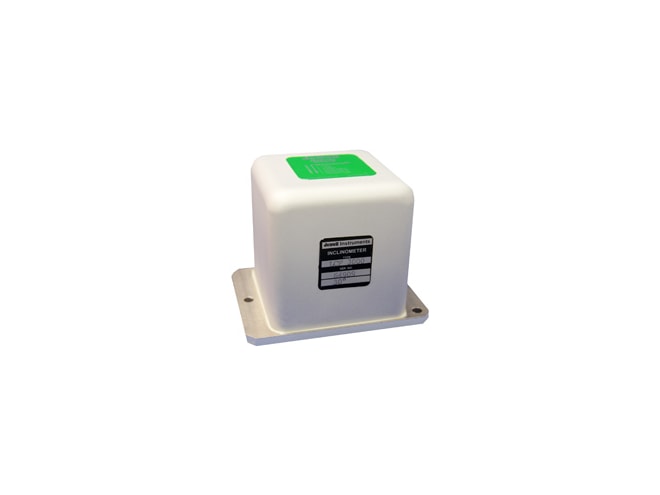

Jewell Instruments LCF-3000 Series Inclinometer

Precision inclinometer with three axis configuration for measuring vertical acceleration or 360° continuous rotation.

Starting at $4,285.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 6-8 weeks
Product Manual Product Specs

Features

  • Tri axis
  • Input ranges: ±3.0°, ±14.5°, ±30.0°, ±90°
  • Micro Radian Resolution
  • Internal temperature sensor
  • High level ±5 Vdc output
  • Low impedance output
  • 12 to 18 VDC input voltage
  • -40 to 80°C operating temperature range
  • Robust design withstand shocks in excess of 1000g and vibration to 20 grms
  • Fluid damped

The Jewell Instruments LCF-3000 Series inclinometer is a precision instrument with a three axis configuration designed for measuring vertical acceleration or 360° continuous rotation. With input ranges from ±3 to ±90°, the LCF-3000 utilizes Jewell's fluid damped, flexure suspension, servo technology for highly accurate measurements with superior repeatability.

LCF-3000 series inclinometers are solid-state, closed loop meters with accuracy, stability and reliability several orders of magnitude greater than open loop types. They are ideally suited for use in the construction industry for setting tilt of road grading and paving machines, in the geophysics filed for tilt and strong motion studies, in the civil engineering field for evaluation of tilt of supporting walls in dams and other structures, and other application where high-accuracy measurement of tilt is required.

Jewell LCF-3000 series inclinometers are fully self-contained and designed to operate from a standard DC power source. Output is an analog 0 to ±5 VDC signal directly proportional to the sine of the angle of tilt. The heart of the LCF-3000 series is a flexure supported torque balance system, rugged enough to withstand severe shock and vibration and still maintain excellent accuracy. The solid state electronics and sensor are enclosed within the sealed housing, permitting operation in hostile environments.

Applications for the Jewell Instruments LCF-3000 Series Inclinometer:

  • Barge and offshore platform leveling and control
  • Antenna leveling and orientation
  • Weapons platform leveling
  • Torpedo attitude control
