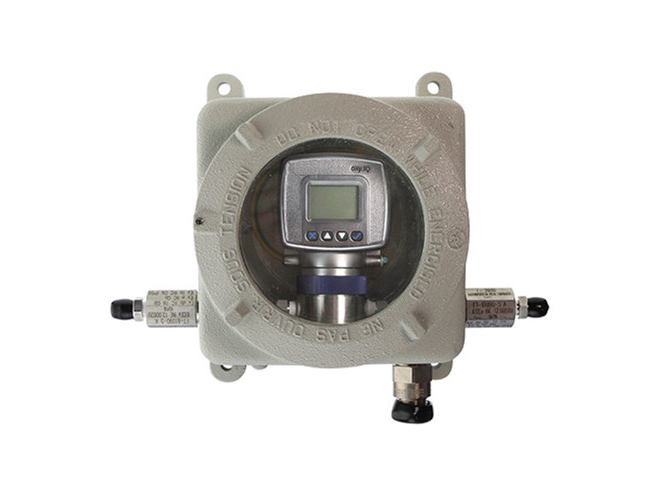

Panametrics oxy.IQ Oxygen Transmitter
Compact and highly reliable transmitter measures oxygen in ten ppm ranges and seven percentage ranges.
- By Panametrics
-
Some models in stock. View available part numbers.
Overview
Features
- User-selectable ranges for ppm & percent oxygen
- Up to 10,000ppm or 50%
- Two-wire, loop-powered 4 to 20mA transmitter
- ±1% of range accuracy at calibration point
- Proven galvanic fuel cell O2 sensor technology
- User-friendly, intuitive interface with diagnostics
- 1/8in NPT process connection at inlet and outlet
- Microprocessor-based, all-digital technology
- Low maintenance, economical and compact
- Sensor failure output error
- Sensor lifetime indication
- NAMUR error indication
- Intrinsically safe options available
- US/CAN Class 1, Div 1, Groups ABCD, T4; ATEX / IECEx Ex ia IIC Ga T4
- Adds 3 to 4 weeks to lead time
Description
The Panametrics oxy.IQ oxygen transmitter is a two-wire, loop-powered transmitter with a linearized 4 to 20 mA output. It measures oxygen in ten ppm ranges and seven percentage ranges. All ranges are user-selectable. This compact transmitter uses proven sensor technology to accurately measure O2 in a variety of gases, even in hazardous environments.
The rugged oxy.IQ is controlled by a microprocessor that enables the user to select the range, trim outputs and perform calibration. Programming is easily done using the keypad and display. The compact oxy.IQ is designed to fit easily into any installation site and can be installed right at the sampling point.
The oxy.IQ's oxygen sensor is an advanced galvanic fuel cell that provides superior performance, accuracy, stability and long life. The cell's innovative design eliminates the potential for negative signal output, reduces sources of contamination. The cell is unaffected by other background gases or hydrocarbons and some models are compatible with acid gases. Recovery from air at low ppm levels takes just a few minutes. Because the cell is self-contained, minimal maintenance is required. There is no electrolyte to change or electrodes to clean.
The Panametrics oxy.IQ is ideal for applications such as:
- Glove box purge and leak detection
- Natural gas
- Semiconductor wafer machines
- Coating process machines
- Membrane air separators
- Inert welding gases
- Pure gaseous hydrocarbon streams
- Process monitoring of gaseous monomers
- Heat treating and bright annealing
The Panametrics oxy.IQ is also available with US/CAN Class 1, Div 1, Groups ABCD, T4; ATEX / IECEx Ex ia IIC Ga T4 intrinsically safe certification. This certification adds approximately 10 weeks to the lead time.
Documents
Spec Sheets
- Panametrics oxy.IQ Oxygen Transmitter Datasheet (543 KB)
- Panametrics oxy.IQ Oxygen Transmitter Datasheet (Spanish) (592 KB)
Manuals
Application Notes and White Papers
Links
Accessories
In Stock
Part Number | Price | Available | |
---|---|---|---|
OXY.IQ-012-000 |
$3,245.00 | 2 in stock | |
OXY.IQ-511-000 |
$3,510.00 | 2 in stock | |
OXY.IQ-512-000 |
$3,675.00 | 2 in stock | |
OXY.IQ-011-000 |
$3,080.00 | 1 in stock |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
Need Help? Call a Calibration engineer at 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
