Rosemount Analytical Model 3200HP pH Sensor
High purity water pH sensor with pHaser flowing junction, ±0.05 pH accuracy, down to 0.4 µS/cm conductivity range
Need Help? Call a Flow Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- ±0.05 pH accuracy
- Less than 0.4 µS/cm conductivity range
- 32 to 160°F (0 to 70°C) sample temp
- 5 to 10 psig sample pressure
- 1 to 3 gph sample flow rate
- Electronic shielding of glass electrode
- Integral solution ground
- Exposed S.S. thermowell for fast temp response
The Rosemount Analytical model 3200HP pH sensor is designed for accurate measurement of pH in low conductivity, high purity (HP) water. Boilers, both industrial and in power plants, provide several points where low conductivity pH measurements are necessary. The key to an accurate measurement is a stable reference electrode that produces the same potential over many months of service whether in calibrating solutions or high purity water.

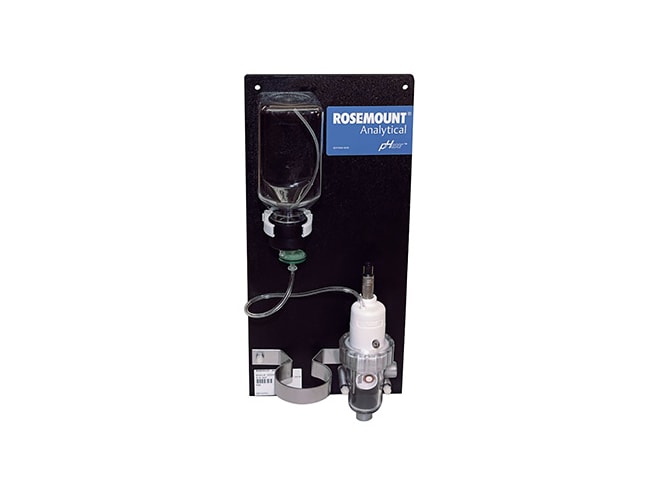

The 3200HP sensor is a panel mounted system consisting of an electrolyte reservoir, a flow cell, a combination pH, reference, temperature sensor with integral solution ground and a calibration cup holder. The flowing reference electrode uses a laser drilled capillary for the liquid junction and the pHaserTM reference junction.
The pHaser reference electrode is unaffected by the conductivity changes that occur when the sensor is moved between calibration buffers and low conductivity water; it continues to produce the same potential. The laser drilled capillary design is immune to drift caused by the long term plugging common to all ceramic reference junctions. A 100 ohm platinum RTD is housed in a 316 SS solution ground near the pH glass electrode assuring fast and accurate temperature compensation. These features combined with the rapid response and stability of the AccuGlass™ pH electrode provide an unsurpassed level of performance in high purity water. VP8 cable assembly works with both VP6 and VP8 sensor connectors.
