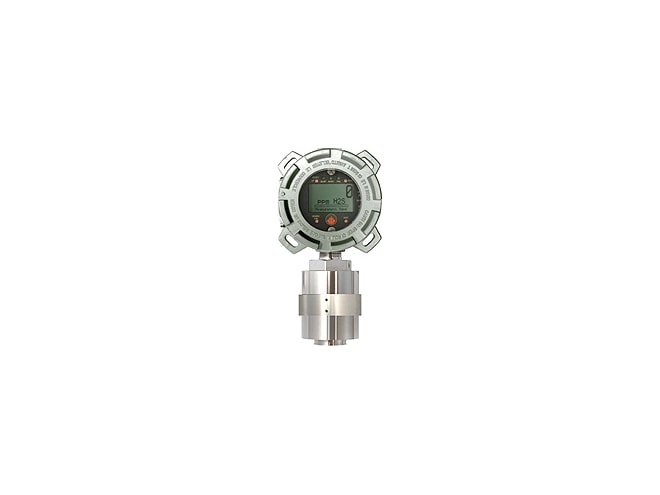

Net Safety ECO-SENSE Loop Powered Gas Detector

Designed specifically for 2-wire, loop-powered installations, allows one man sensor calibrations in hazardous areas.

Retired products cannot be ordered

For replacement see the M21 Millennium II Single Channel Transmitter

Effective April 15th, 2025 Net Safety Monitoring has added a 5.4% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews

Manufactured

By Net Safety Monitoring

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Functions in a 2-wire 4–20 mA sink mode
Allows "one man" sensor calibration in hazardous areas
LCD readout and front panel alarm LED indicators
Security mode allows locking of critical parameter
CSA/ANSI/ATEX certifications
Standard "Fault Supervision" circuitry continuously monitors for failed sensor
Field replaceable H2S sensor module
4–20 mA signal may be transmitted thousands of ft on 2-wires

Net Safety ECO-SENSE Loop Powered Gas Detector detector (formerly branded Net Safety) is an innovative H2S gas detection package designed specifically for 2-wire, loop-powered installations. An economic and ecological choice, this extremely versatile detector functions at less than 0.75 watts of power with 10–30 V dc and a full LCD display with LED indicators.

This advanced sensor interface includes a real time clock and calendar which is used for logging events such as sensor replacement, alarms and calibrations. Calibration offset and gain factors may be viewed for accurately predicting sensor "end of life" conditions.

Operator interface is through a menu driven magnetic keypad allowing full access without opening the enclosure. There are no potentiometers and all adjustments are performed through the keypad. Calibration magnet is included for non-intrusive calibration, no other special electronic devices are needed. Users can also program warm up and calibration exit delays to avoid false alarms. Delay hold outputs at zero until sensor signals stabilize. IN/OUT alarm trip delays may also be programmed.

The ECO-SENSE H2S sensor overcomes noise immunity problems associated with electrochemical sensors by enclosing all low level signals within a grounded sensor head available in aluminum and stainless steel. An integral "transient voltage suppressor" protects the device in case of lightning or other surge voltage levels. The sensor is enclosed in a rugged Class 1, Div 1 enclosure suitable for hazardous environment installations and has been certified by CSA, ANSI and ATEX.
