KEP INTELLECT-69 Ratemeter / Totalizer

Name: KEP INTELLECT-69 Ratemeter / Totalizer
Price: 439.0 USD
Availability: BackOrder

High/low scaling from front panel, 2 set points assignable to rate or total.

Starting at $439.00

View Company Reviews

Manufactured

By KEP

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Features

High / low scaling from front panel
2 set points assignable to rate or total
Display rate, integrated total and peak & valley
0-5V, 0-10V, 1-5V, 4-20mA or 0-20mA analog Input
NEMA 4X/IP 65 front panel
24V output power for peripherals
RS422/232 Serial Communications option
4-20mA output option

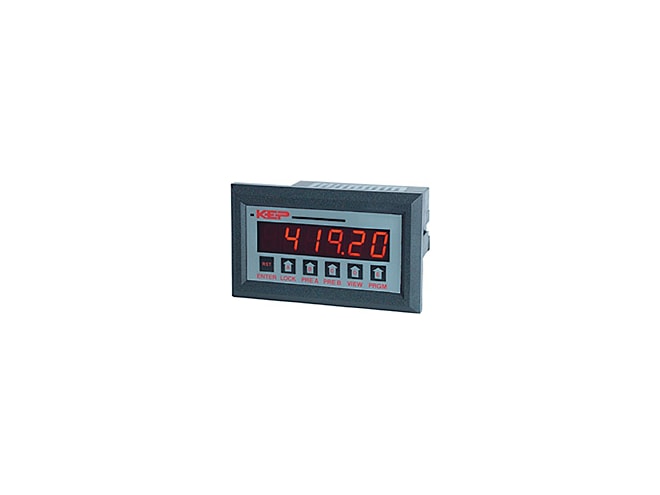

The KEP INTELLECT-69 Ratemeter / Totalizer features 6 digits of bright, 7-segment LED displays, the Intellect-69 is an integrating totalizer/ratemeter which accepts analog signal inputs. The unit can be field programmed to accept 4-20mA, 0-20mA, 0-5V, 0-10V or 1-5V signals. An optional Square Law input is available for inputs that require square root extraction. A 4-20mA output option is available to control strip recorders or to transmit linear signal other peripherals. Two assignable set points are standard. The high and low scaling settings are programmable from the front panel. By pressing the "view" button, the unit will display: integrated total, rate, peak or valley. Press the "lock" key once to freeze the display. RS422 or RS232 serial communications are available options for data communication with a host computer.
