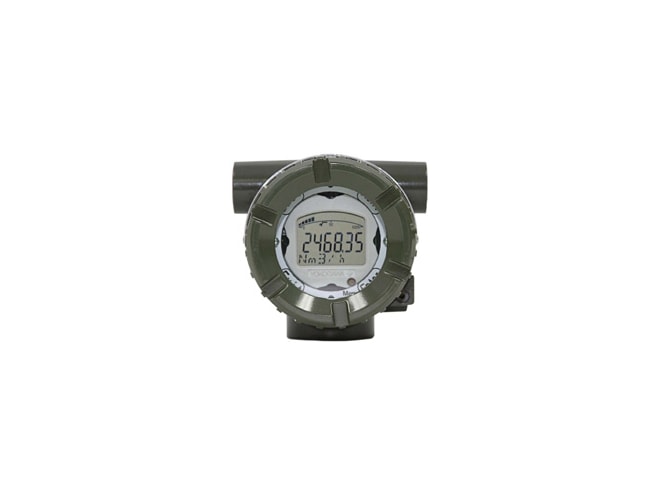

Yokogawa MLX Loop Powered Process Indicator
Receives DC current signals from electronic transmitters and indicates process measurement values
Need Help? Call a Temperature Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Accuracy: ±0.05% of full scale +1 digit
- Operating current: 3.6mA to 28mA
- Ambient temperature: -22 to 140°F (-30 to 60°C)
- Explosion protection: FM, CSA, ATEX, and IEC
- Numerical: six 7-segment digits
The Yokogawa MLX Loop-Powered Process Indicator receives DC current signals from electronic transmitters and indicates process measurement values. Standard models are general purpose.
The MLX is the latest addition to Yokogawa's family of loop powered indicators operating from a 4-20 mA DC input This model uses the same explosion proof housing as the MLA, MLD, and MLD1 and incorporates the LCD display from the EJX pressure transmitter. The display itself contains a 6 digit numerical display, a 6 digit alphanumeric display for engineering units and a 20 segment bar graph indicating 0 to 100% of full scale. The display is user configurable to show the desired engineering units. Another unique feature is square root extraction from a pressure transmitter signal for flow measurement. Please consult our general specification or instruction manual regarding product related details, options, mounting and wiring.
