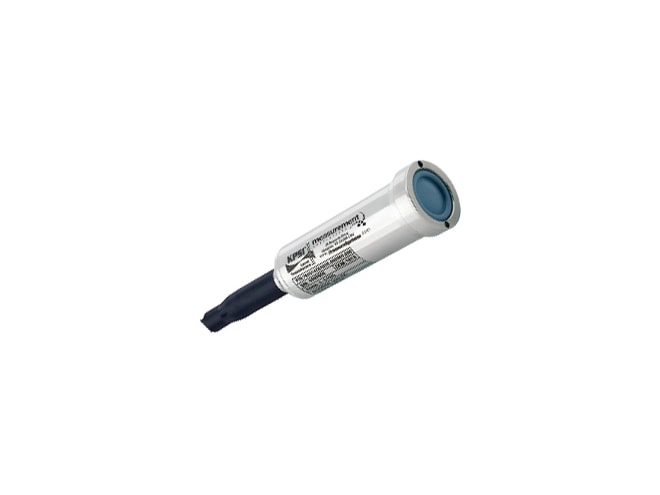

KPSI 705 Level Transducers

Teflon coated elastomeric diaphragm, designed for wastewater applications, UL and CUL safety approvals.

Features

  • UL and CUL safety approvals
  • FM intrinsic safety approval (except for Output "4-20 mA, temp option")
  • Accuracy: ±0.25%FSO
  • 5, 10, 15 and 20 psi ranges available
  • Resolution: ±0.0001%FS
  • Multiple analog outputs
  • Welded 316SS or titanium
  • Operating Temp: -4 to 140°F (w/polyurethane cable)
  • Two year warranty
  • Protection Rating; IP68, NEMA 6P
  • Non-standard configurations are available with a 25 pc minimum quantity

The KPSI 705 Level Transducers are submersible hydrostatic transducers that include UL and CUL safety approvals. The FM intrinsic safety approval standard is included for all versions except those with output 4-20 mA, temperature option. are specifically designed to meet the adverse environments encountered in wastewater applications. This suitably-sized transducer features a wide sensing area comprised of a Teflon® coated elastomeric diaphragm for reliable operation in highly viscous or slurry environments.

Applications include:

  • Lift stations
  • Pump control
  • Waste water
  • Slurry tanks
KPSI Spare Nose Caps
KPSI Spare Nose Caps

Spare nose caps for KPSI level transducers.

Some Models in Stock
Starting at $43.70
KPSI Body Clamp Anode
KPSI Body Clamp Anode

Sacrificial anode body clamp for KPSI level transducers.

In Stock
$36.42
KPSI Cable Hanger
KPSI Cable Hanger

Cable hanger for KPSI level transducers.

In Stock
$36.42
KPSI Anti-Snag Cone Overmold
KPSI Anti-Snag Cone Overmold

Anti-snag cone, one inch bore, overmold.

In Stock
$29.13
KPSI 840 Junction box
KPSI 840 Junction box

Junction box with 810 SuperDry Vent Filter.

In Stock
$450.02
KPSI 845 Junction Box
KPSI 845 Junction Box

Junction box with 815 Aneroid Bellows.

In Stock
$464.57
FloCat STE-DISP Sensor Termination Enclosure with Display
FloCat STE-DISP Sensor Termination Enclosure with Display

Compatible with any manufacturer's transmitter & moisture protection method, outputs preprogrammed by Instrumart at no cost.

$650.00
KPSI 827 Stainless Steel Nose Weight
KPSI 827 Stainless Steel Nose Weight

Provides an additional 16.5oz of weight to transducers.

In Stock
$99.30

This product can be used in the following applications:

Part Number Level Range Cable Length Price Available
705S14C4C005.000000.000C10025A
Show Full Configuration
5 PSI
25 feet of cable
 $635.54 12 in stock
705S14C4C020.000000.000C10050A
Show Full Configuration
20 PSI
50 feet of cable
 $688.54 8 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
