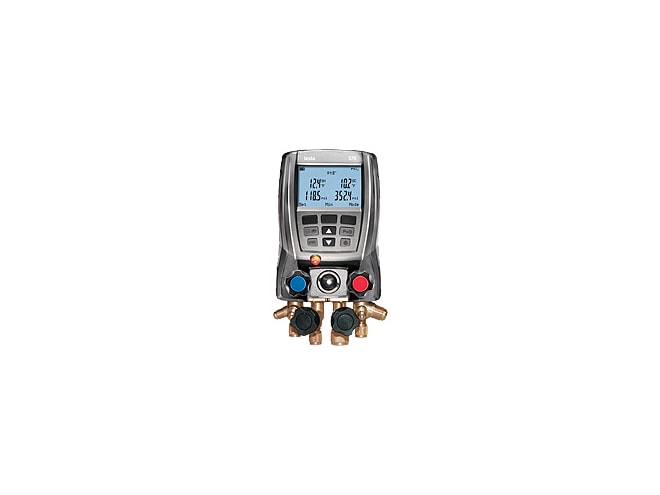

Testo 570 Refrigeration System Analyzer Kit

Simultaneous superheating and subcooling calculations in real-time, w/ data storage.

Testo 570 Refrigeration System Analyzer Kit — Testo 570 Refrigeration System Analyzer

Testo 570 Refrigeration System Analyzer
Testo Refrigeration Systems Product Video

Retired products cannot be ordered

View Company Reviews

Part Number

0563 5703

Manufactured

By Testo

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Four-way valve block with four connections
Integrated vacuum measurement
Temperature-compensated leak testing
Heat pump mode
Three temperature probe connections
Newly updated EasyKool software
40 refrigerant profiles stored in instrument
Record up to 72 hours of measurement values

The Testo 570 Refrigeration System Analyzer is equipped with a 4-way valve block, that's ideal for installing and troubleshooting all types of refrigeration, heat pumps and AC systems. Use it daily for calculating superheat and sub cooling simultaneously, in real time, with two external temperature probes. During heat pump mode the 570 saves you time by automatically switching over the high and low side pressure and temperature without having to change the hoses.

For long term or multiple measuring cycles the 570 can be programmed and left to automatically collect and store data for up to 72 hours. This internal memory gives the technician the ability to accurately diagnosis system errors that could easily have been missed in a manual process.

Use testo's easyKool software, exclusive to testo RSA's, for complete data management, providing onsite reports to customers, and printing and displaying measuring results.

Kit includes:

2 Clamp probes (NTC)
USB cable
Hard carry case

Spec Sheets

Testo 570 Refrigeration System Analyzer datasheet PDF (1.4 MB)

Manuals

Testo 570 Refrigeration System Analyzer Kit Manual PDF (1.3 MB)

Cables

Testo USB cable

Testo USB cable

USB cable (mini USB to Standard USB).

Printers

Testo Infrared Printer

Testo Infrared Printer

Testo printer with wireless IRDA and infrared interface.

$476.00 $428.40

Testo Thermal Printer Paper

Testo Thermal Printer Paper

Thermal paper for Testo Infrared printer .

Sensors/Probes

Testo Air Temperaure Probe

Testo Air Temperaure Probe

Testo air temperature probe for Testo 550/570 refrigeration system analyzer.

$129.00 $116.10

Testo Surface Temperature Probe

Testo Surface Temperature Probe

Testo surface temperature probe for Testo 550/570 refrigeration system analyzer.

$145.00 $130.50

Testo Pipe Wrap Temperature Probe

Testo Pipe Wrap Temperature Probe

Pipe wrap probe with Velcro for pipes up to 3" in diameter.

$150.00 $135.00

Testo Clamp Temperature Probe

Testo Clamp Temperature Probe

Testo clamp temperature probe for Testo refrigeration system analyzers.

Testo Pipe Clamp Probe

Testo Pipe Clamp Probe

Clamp probe NTC for pipes from 1/4" to 2 1/2".

$309.00 $278.10

Accessories

Please consider these optional accessories.

Testo Plug-In Power Supply

Testo Plug-In Power Supply

Plug-in mains adapter, 5 VDC 500 mA with European adapter, 100-250 VAC, 50-60 Hz.

Testo EasyKool Software

Testo EasyKool Software

Configuration and analysis PC software for 556/560/570, includes USB data cable.

$459.00 $413.10

This product can be used in the following applications:

Refrigeration Control / Monitoring
