Features

  • Operates up to 140°C
  • Pressure logging range: 0 to 5 Bar (0-72.5 PSIA)
  • Submersible (IP68)
  • User Replaceable Battery
  • Rugged
  • Programmable Start Time
  • Engraved Label
  • CE Compliant
  • Software Battery Life Indicator

What's in the Box

  • NIST traceable calibration certificate

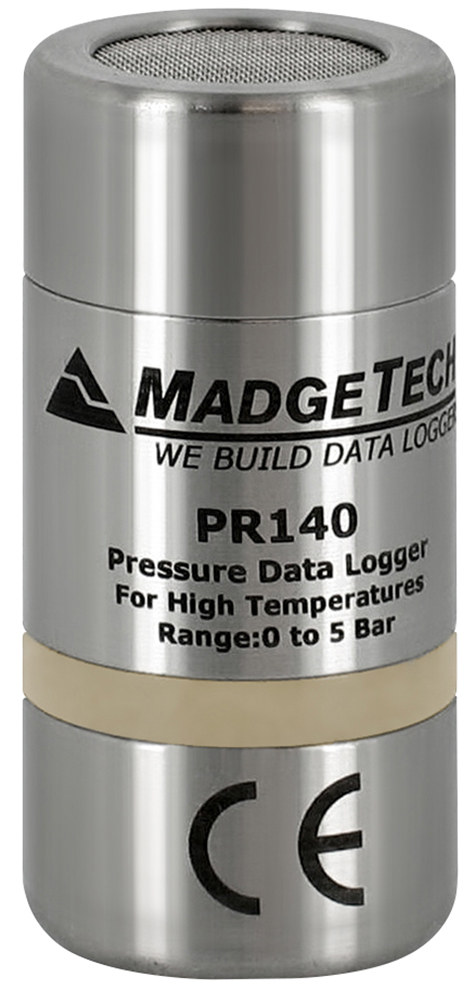

The MadgeTech PR140 Pressure Data Logger is designed for use in autoclave validation and mapping. This rugged device can withstand temperatures up to 140°C and is completely submersible (IP68).

The PR140 is built with a precision stainless steel pressure gauge. The device has an accuracy of ±0.03 Bar (±0.435 PSI), which can be achieved over a wide temperature range, from –20°C to +140°C (-4°F to 284°F). The PR140 can be programmed to take readings as often as once per second (1Hz), and has non-volatile memory that can store up to 32,700 measurements.

The PR140 is easy to use. Simply place it in the IFC400 docking station, connect to a computer, and the device can be started, stopped or downloaded using the MadgeTech software. Graphical, tabular and summary data is provided for analysis and can be viewed in PSIA, mmHg, bar, Torr and kPa. The data can also be automatically exported to Excel for further calculations.

Applications for the PR140 pressure data logger include:

  • Autoclave Validation and Mapping
  • Canning and Cooking Pouches
  • Pressurized Process Reactors and Streams
  • Beverage Production, Including Wine and Soda

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

MadgeTech IFC400 Data Logger Interface
PC Interface cable package for Madgtech temperature data loggers
$120.00
In Stock

Cases

Carrying cases, spare cases

MadgeTech MT-AluCase Briefcase
Aluminum data logger briefcase, lightweight, durable, 14 or 18 inch wide
$325.00

Accessories

Please consider these optional accessories.

MadgeTech ER1425S-HT Replacement Battery
Replacement battery for the HiTemp140, HiTemp140-PT, HiTemp140-TSK & HiTemp140-PT-TSK.
$50.00
MadgeTech MagMount-1 Magnetic Holder
Magnetic holder for use with the MadgeTech PR140, HiTemp140 Series and 1000 Series data loggers
Call for pricing
MadgeTech IFC406 Multiplexer Docking Station
6 Port, Multiplexer docking station with USB cable, software and manual
$549.00
MadgeTech MultiMount-Z Data Logger Stand
Versatile mount for use with MadgeTech HiTemp140 series data loggers
Call for pricing
