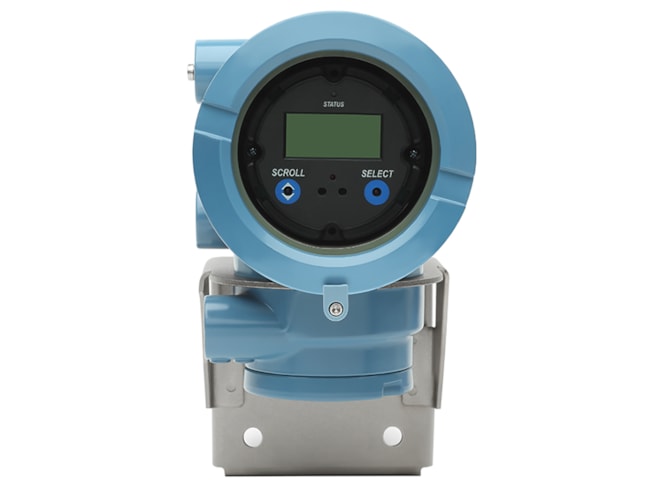

Micro Motion 1700 Single Variable Flow Transmitter

Integral or field-mounted MVD technology transmitter for applications requiring only a single flow variable​ output.

Starting at $2,195.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 5 weeks
Product Manual Product Specs

Features

  • Coriolis transmitter that outputs one flow measurement variable
    • Mass flow, volume flow, or gas standard volume flow rate
  • Integral mount with 360° rotation or select a field mount option
  • Available with Smart Meter Verification
    • Check performance & integrity without stopping flow
  • 18 to 100 VDC & 85 to 265 VAC self switching power
  • Class I, Division 1, Zone 1 local operator interface

Micro Motion 1700 single variable flow transmitters are powered by MVD Technology and designed for compact integral mounting, or to easily mount on a wall or pipe stand. These transmitters feature a rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface designed to make flow meter access easy. Flow meter commissioning is simple and straight-forward with virtually no special programming requirements.

MVD technology is high-speed signal processing that is embedded in electronics to deliver accuracy under the toughest conditions: entrained gas, high noise, high turndown and more. The front-end digital processing dramatically reduces signal noise and gives you faster response time to identify and resolve problems easily with built-in diagnostics.

Software

Micro Motion ProLink III Software
Micro Motion ProLink III Software

Configuration & management software for Micro Motion and Rosemount Flow Meters.

Starting at $1,525.00

Accessories

Please consider these optional accessories.

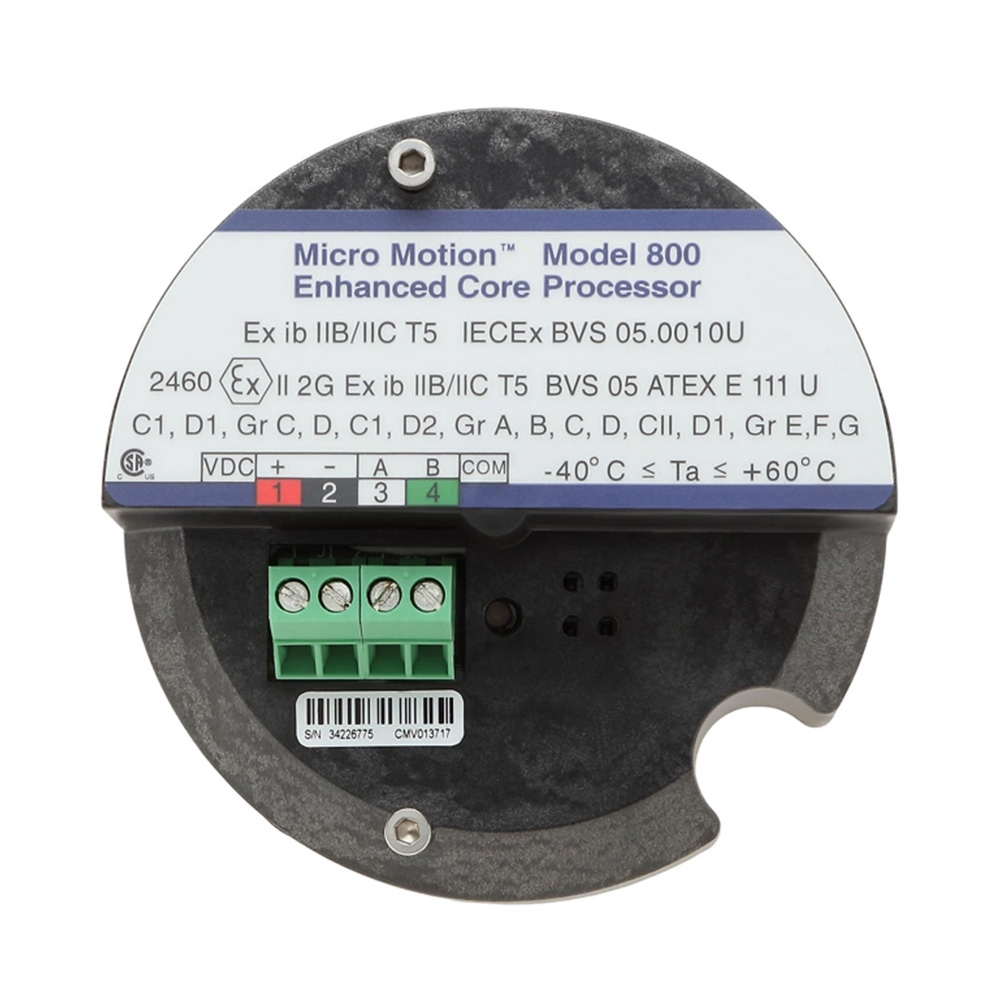

Micro Motion Model 800 Enhanced Core Processor Assembly
Micro Motion Model 800 Enhanced Core Processor Assembly

Enhanced core processor assembly for Micro Motion 1700 and 2700 flow transmitters.

Starting at $3,443.00
Micro Motion Model 700 Standard Core Processor Assembly
Micro Motion Model 700 Standard Core Processor Assembly

Core processor assembly for Micro Motion 1700 and 2700 flow transmitters.

Starting at $3,322.00
Micro Motion 1700 / 2700 Terminal Access Cover
Micro Motion 1700 / 2700 Terminal Access Cover

4- or 9-wire remote transmitter sensor terminal access cover with seal.

Starting at $554.00
Micro Motion 1700 / 2700 4-Wire Terminal Block
Micro Motion 1700 / 2700 4-Wire Terminal Block

Transmitter 4-wire terminal block for Micro Motion 1700 and 2700 flow transmitters.

$68.00
Micro Motion 1700 / 2700 Display Sub-Assembly
Micro Motion 1700 / 2700 Display Sub-Assembly

Display sub-assembly for Micro Motion 1700 and 2700 variable flow transmitters.

$831.00
Micro Motion 1700 / 2700 Terminal Block Kit
Micro Motion 1700 / 2700 Terminal Block Kit

9-wire sensor connection terminal block kit for Micro Motion 1700 and 2700 flow transmitters.

$112.00
Micro Motion 1700 / 2700 Hardware Kit
Micro Motion 1700 / 2700 Hardware Kit

Hardware for mounting transmitter or core processor to a remote bracket or integral mount base.

Starting at $60.00
Micro Motion 1700 / 2700 Housing Ring
Micro Motion 1700 / 2700 Housing Ring

4-wire remote terminal housing ring for the Micro Motion 1700 and 2700 flow transmitters.

Starting at $526.00
Micro Motion 9-Wire Remote Enhanced Core Processor
Micro Motion 9-Wire Remote Enhanced Core Processor

9-wire remote enhanced core processor with CSA, IECEX, NEPSI, and ATEX approval options.

Starting at $3,851.00
Micro Motion 9-Wire Remote Standard Core Processor
Micro Motion 9-Wire Remote Standard Core Processor

Doublehop remote core processor with EAC, UL, ATEX, IECEX, and CSA approval options.

Starting at $3,729.00
Micro Motion Transmitter Pipe Mount Kit
Micro Motion Transmitter Pipe Mount Kit

Transmitter pipe mount u-bolt kit in standard or stainless steel versions.

Starting at $96.00
Micro Motion 1700 / 2700 Gland
Micro Motion 1700 / 2700 Gland

Gland with EExd or EExe ratings for Micro Motion 1700 and 2700 flow transmitters.

Starting at $367.00
Micro Motion 1700 / 2700 Output Terminal Cover
Micro Motion 1700 / 2700 Output Terminal Cover

Terminal cover with seal for Micro Motion 1700 and 2700 flow transmitters.

Starting at $693.00
Micro Motion 1700 / 2700 Electronics Compartment Cover
Micro Motion 1700 / 2700 Electronics Compartment Cover

Cover with seal for the main electronics compartment of Micro Motion 1700 and 2700 flow transmitters.

Starting at $673.00
Micro Motion 1700 / 2700 Replacement O-Ring
Micro Motion 1700 / 2700 Replacement O-Ring

Replacement o-ring for transmitter cover, transmitter housing, or core processor cover.

Starting at $61.00
Micro Motion 1700 / 2700 Stainless Steel End Cap
Micro Motion 1700 / 2700 Stainless Steel End Cap

Stainless steel end cap, 9-wire al for the Micro Motion 1700 and 2700 flow transmitters.

$578.00
Micro Motion 1700 / 2700 Stainless Steel Bracket
Micro Motion 1700 / 2700 Stainless Steel Bracket

Brackets for remote mount Micro Motion 1700 and 2700 flow transmitters and remote core processor housings.

Starting at $272.00
Micro Motion 9-Wire Remote Standard Core Plate Assembly
Micro Motion 9-Wire Remote Standard Core Plate Assembly

Replacement terminal board for doublehop remote core processors and Micro Motion 1700 and 2700 transmitters.

$416.00
Micro Motion 9-Wire Remote Enhanced Core Plate Assembly
Micro Motion 9-Wire Remote Enhanced Core Plate Assembly

Replacement enhanced terminal board for doublehop remote core processors and Micro Motion 1700 and 2700 transmitters.

$365.00
