MadgeTech HiTemp140-TSK Data Logger

Thermal Shield, submersible rigid probe for extreme temperature monitoring and memory for 32,700 readings.

MadgeTech HiTemp140-TSK Data Logger
MadgeTech 4 Data Logger Software Overview

Retired products cannot be ordered

View Company Reviews

Manufactured

By MadgeTech

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Specs (2 Files)

Features

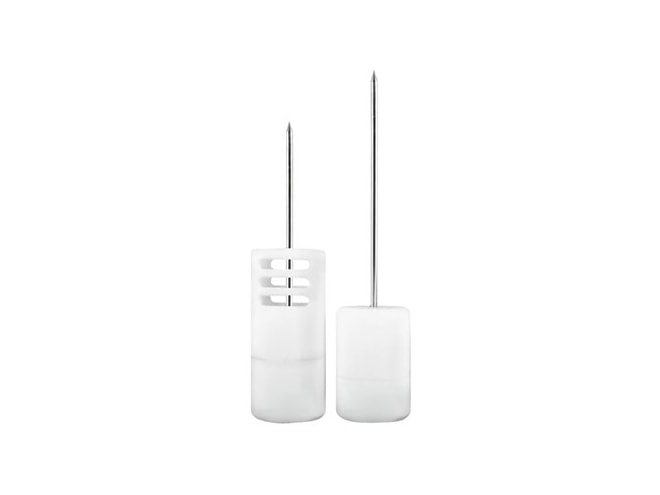

5.25 or 7 inch probe style, housed in a thermal shield
- Choice of flush or vented
- Can be used with or without thermal shield
100 Ω Platinum RTD -328 to 500°F (-200 to 260°C)
- 0.02°F (0.01°C) resolution
Immediate or Delay Start
Up to 1 Second Reading Rate
316 Stainless Steel
CE Approved

What's in the Box

NIST traceable calibration certificate

The MadgeTech HiTemp140-TSK data logger can validate a wide range of temperature processes, it has a durable thermal shield that protects probe and allows for a fast response time. It is ideal for use in autoclave validation, monitoring food processing and dishwasher testing.

Using the MadgeTech 4 software, the data logger is fast and easy to setup. You can remove the thermal shield and place the HiTemp140 into the IFC400 or IFC406 docking station (sold separately) to program the settings, then re-assemble.

The HiTemp140-TSK can be completely submerged and is built for applications that require extreme temperature monitoring.

The flush style is designed to have the probe entirely exposed while the data logger is protected by the thermal shield. This allows full use of the length of the probe for applications that require internal temperature monitoring.

The vented style offers more probe protection and is designed for shorter probe lengths in applications where the data logger might be subject to movement in a fully submerged application.

MadgeTech HiTemp140-TSK Data Logger Applications

Peanut roasting
Food processing
Meat processing
Autoclave validation
Conveyer ovens
Dishwasher testing
Incubator validation

Spec Sheets

Application Notes and White Papers

Temperature Data Logging Solutions for USDA Regulation Compliance PDF (2.1 MB)

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
